The Vitus e-Substance loads your ride with freedom and choice. It expands your world, opening up new possibilities to ride and explore where otherwise you might not have looked. Unshackled from the same old routes, each ride reveals new ways ahead, like a fresh map - that bridleway to who-knows-where, the gravel track through the woods or the rougher shortcut that you know is quicker but that other bikes couldn’t handle.
See, in a world obsessed with pace, sometimes we need to focus on the place, the journey and the fun that comes from a bike with the capability to seek out adventures where others wouldn’t.

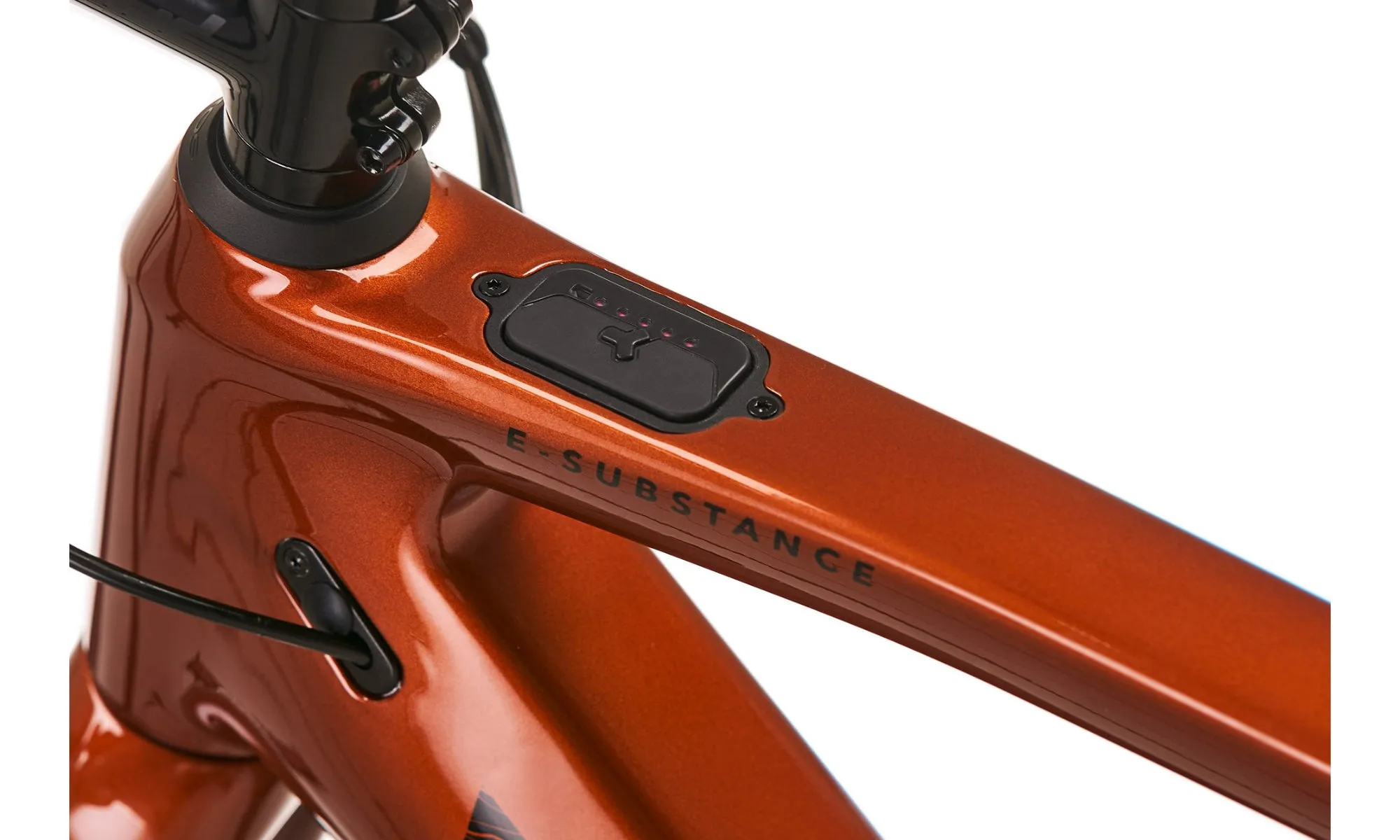

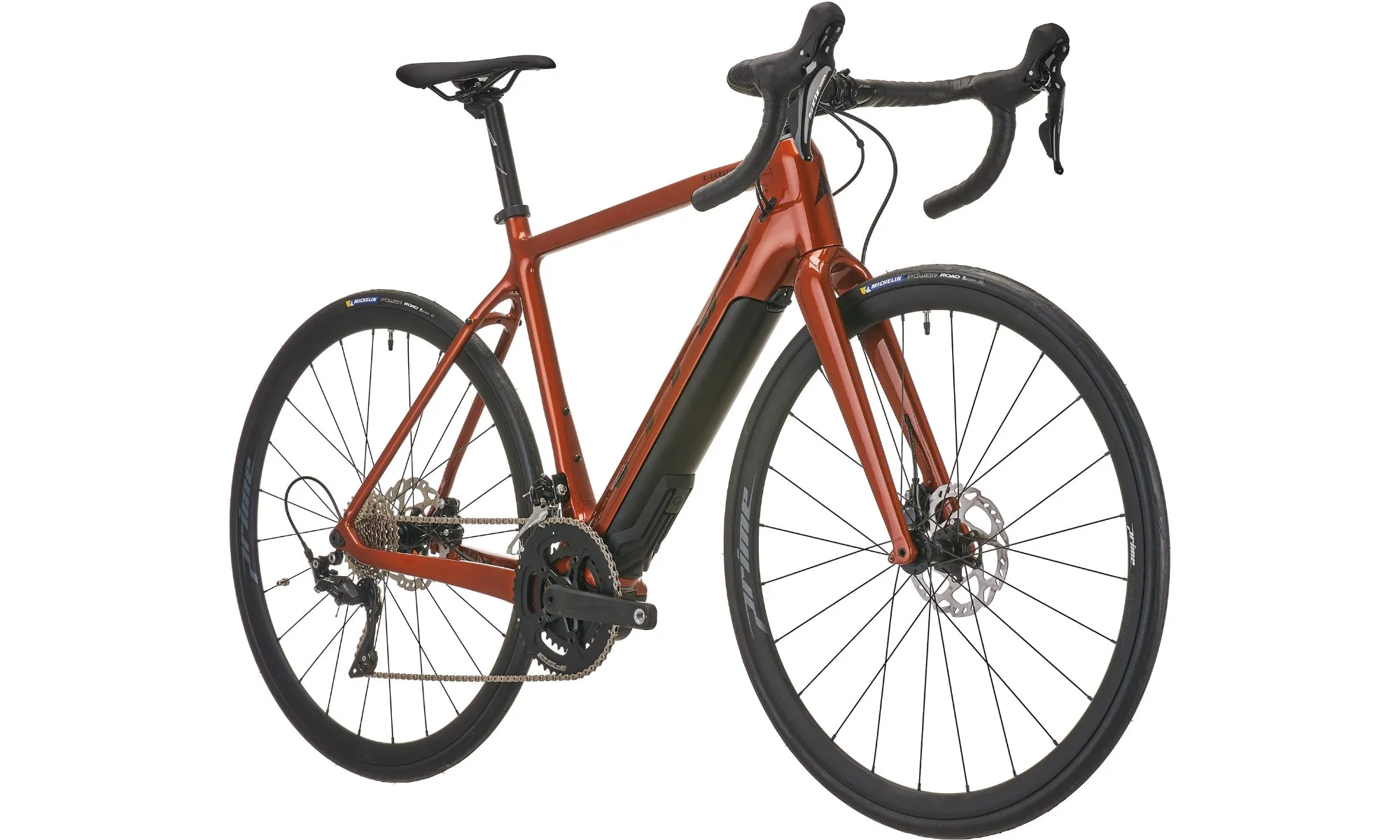

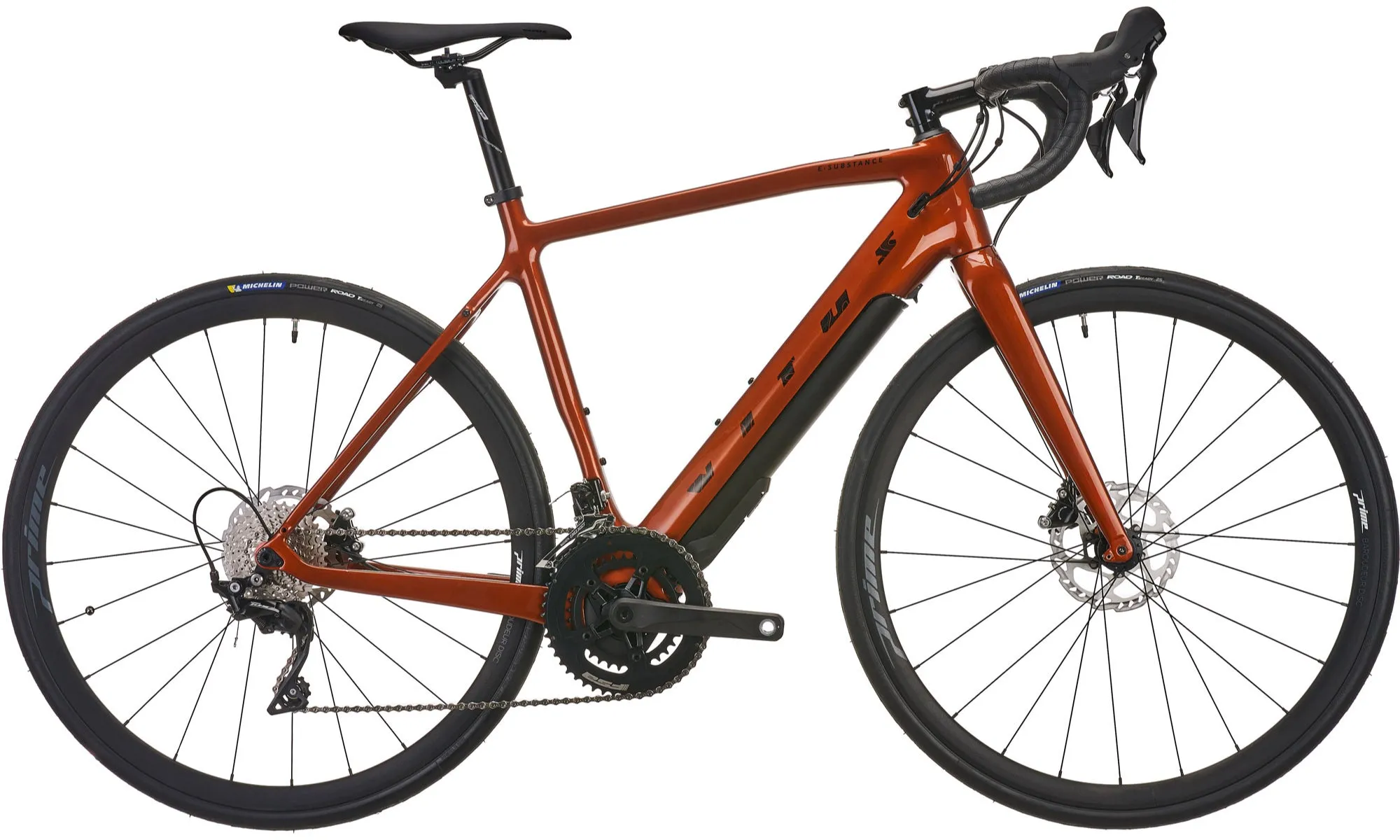

Whether embarking on a bikepacking adventure or simply staying light for a mixed-terrain local loop, the e-Substance is capable of adapting to suit your ride. At its core, a lightweight carbon frame and fork are tuned for comfort on long days and across varied surfaces, aided by the compact Fazua electric drive system with three assistance levels up to 250 watts. The latest top-tube controller lets you easily manage performance and with everything cleanly integrated, the Substance retains its modern look. Paired with Shimano’s trusty 105 2X drivetrain, the frame is also compatible with 700c or 650b wheels, so you can fine-tune the setup to best fit where you are riding. For tough rides where water, food and spares might be hard to come by, rack mounts enable you to load up with whatever’s required to reach the next supply point.
This isn’t simply about the same cliches of getting off the beaten track or going in search of the road less travelled, because the e-Substance is more than a gravel or adventure bike. Retaining the essence of what the Substance stands for, the addition of the electric drive system simply opens up the possibility for you to do more. It’s a bike that gives you options. The Substance family empowers a new mindset, one that entices you to break away from routine and to ride where you want to ride, unrestricted.

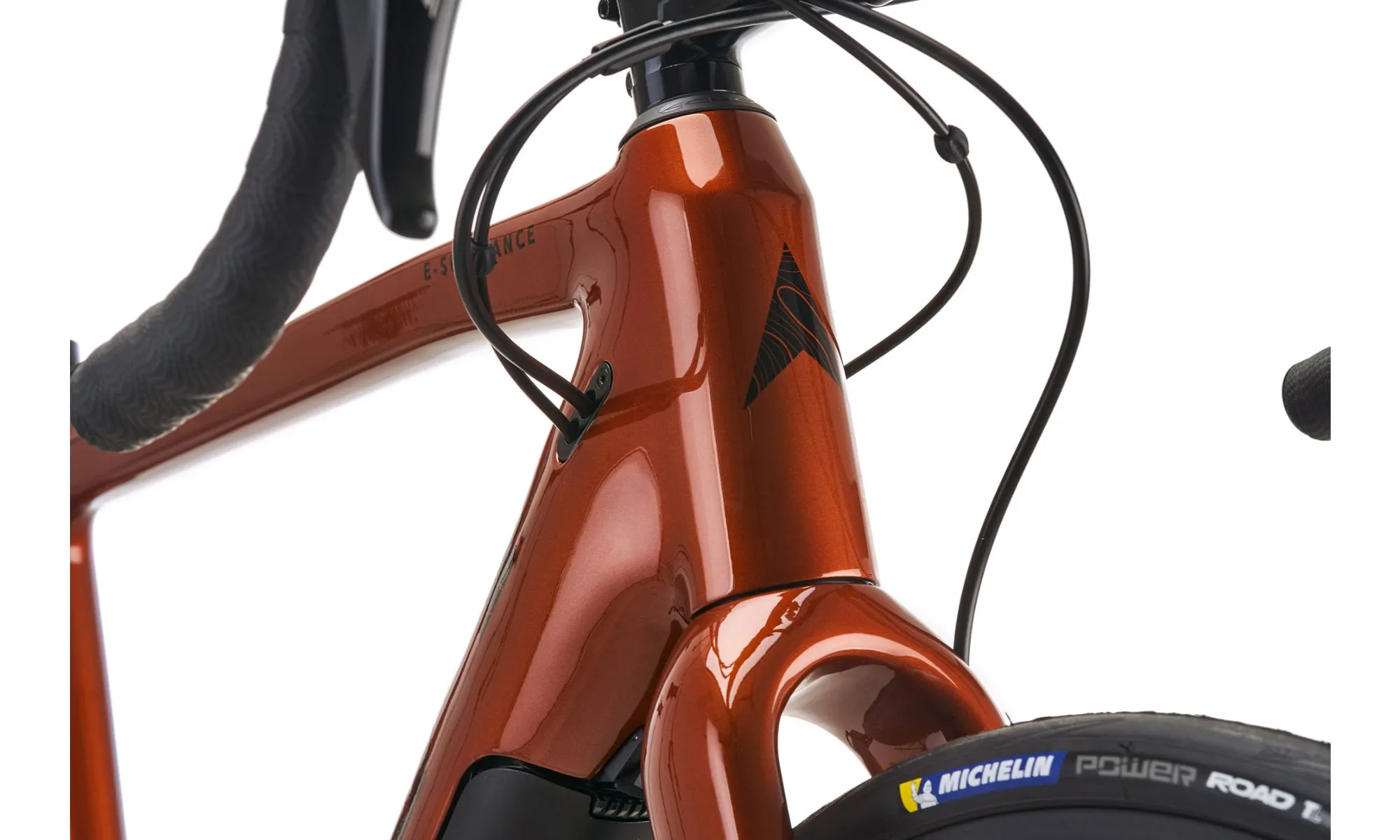

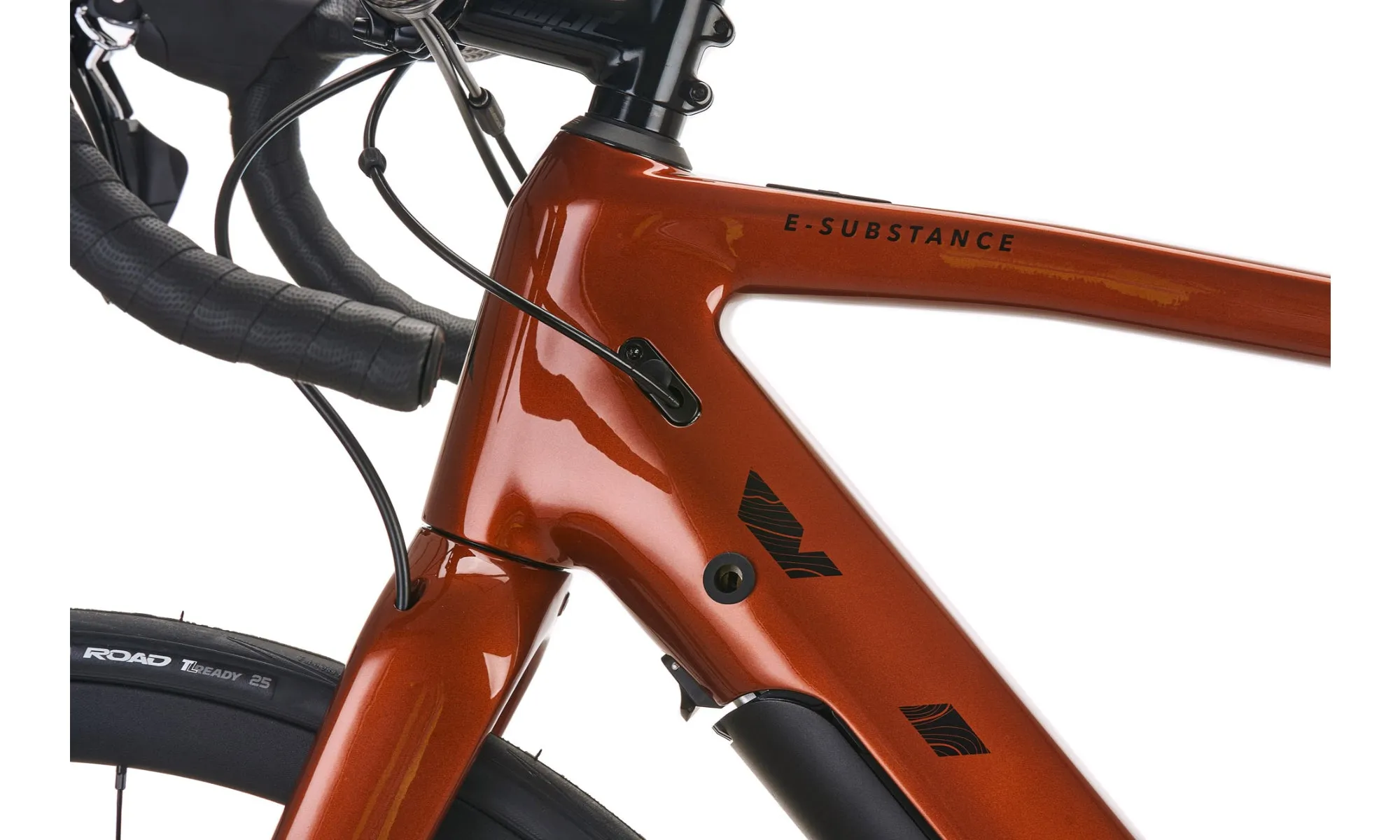

UD carbon frame with internal cable routing
Fazua evation powered adventure road bikeDrop handlebar explorer with electric assistance |
Frame MaterialUD Carbon |
Suspension Travel (MTB Only)N/A |
Wheel Size700c |
Available SizeS, M, L, XL |
ColourCopper |
Weight:Medium: 13.7kg |
Specifications
FRAMEE-Substance Carbon - Fazua UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm axle, Flat Mount | REAR RIMPrime Baroudeur Disc Alloy 700c, Tubeless Ready |
FORKSE-Substance Carbon UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts | FRONT HUBPrime RD020 12x100mm, Centre Lock |
SHOCKN/A N/A | REAR HUB Prime RD020 142x12mm, Centre Lock, HG Freehub |

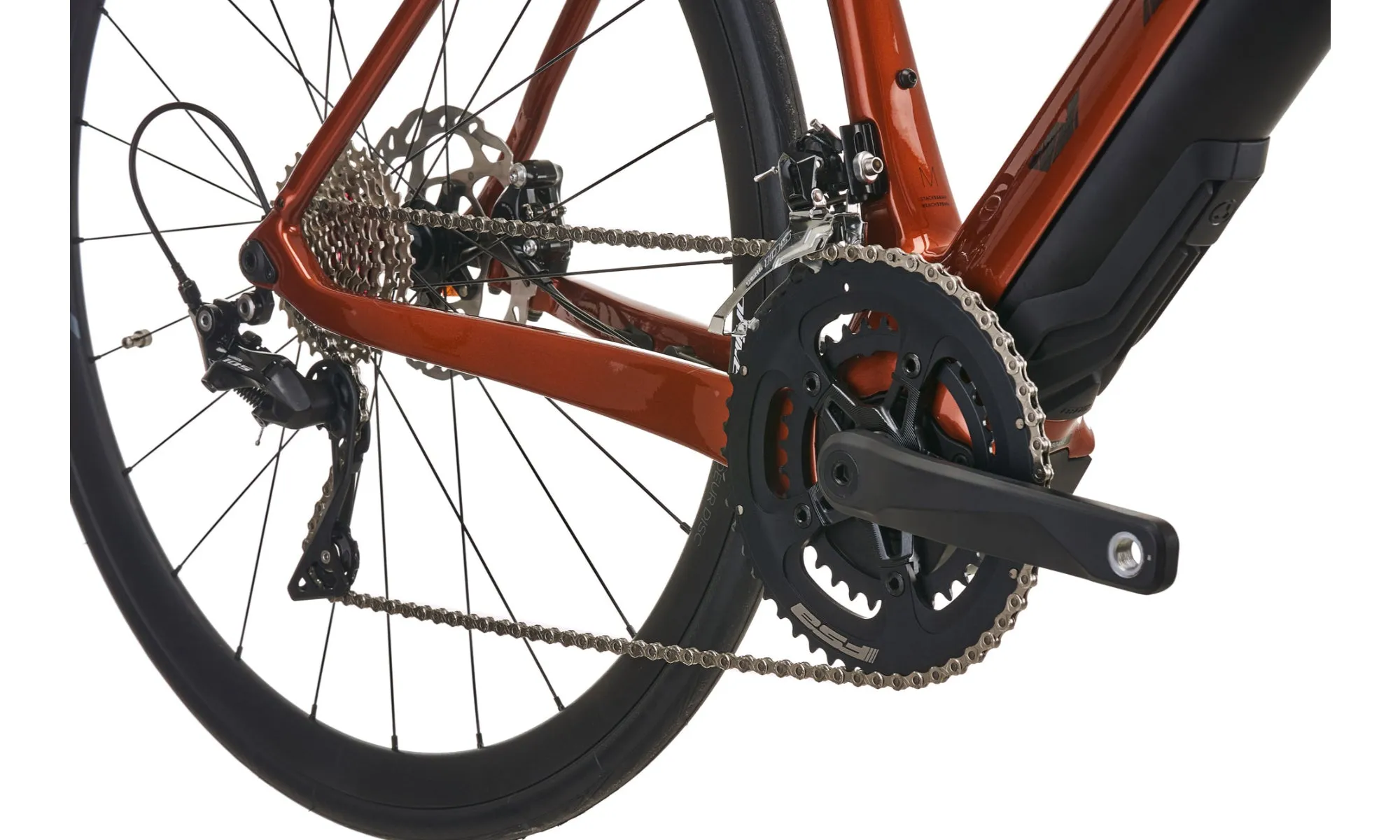

CHAINSETFSA CK 746 50/34T, 2 x 10 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm | WHEELSETPrime Baroudeur Disc Alloy 700c, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, HG Freehub |
BOTTOM BRACKETN/A N/A | FRONT TYREMichelin Power Road TLR 700c x 25c, Tubeless Ready |
FRONT DERAILLEURShimano 105 R7000 FD-R7000-L, Braze-On, 2 x 11 Speed | REAR TYREMichelin Power Road TLR 700c x 25c, Tubeless Ready |

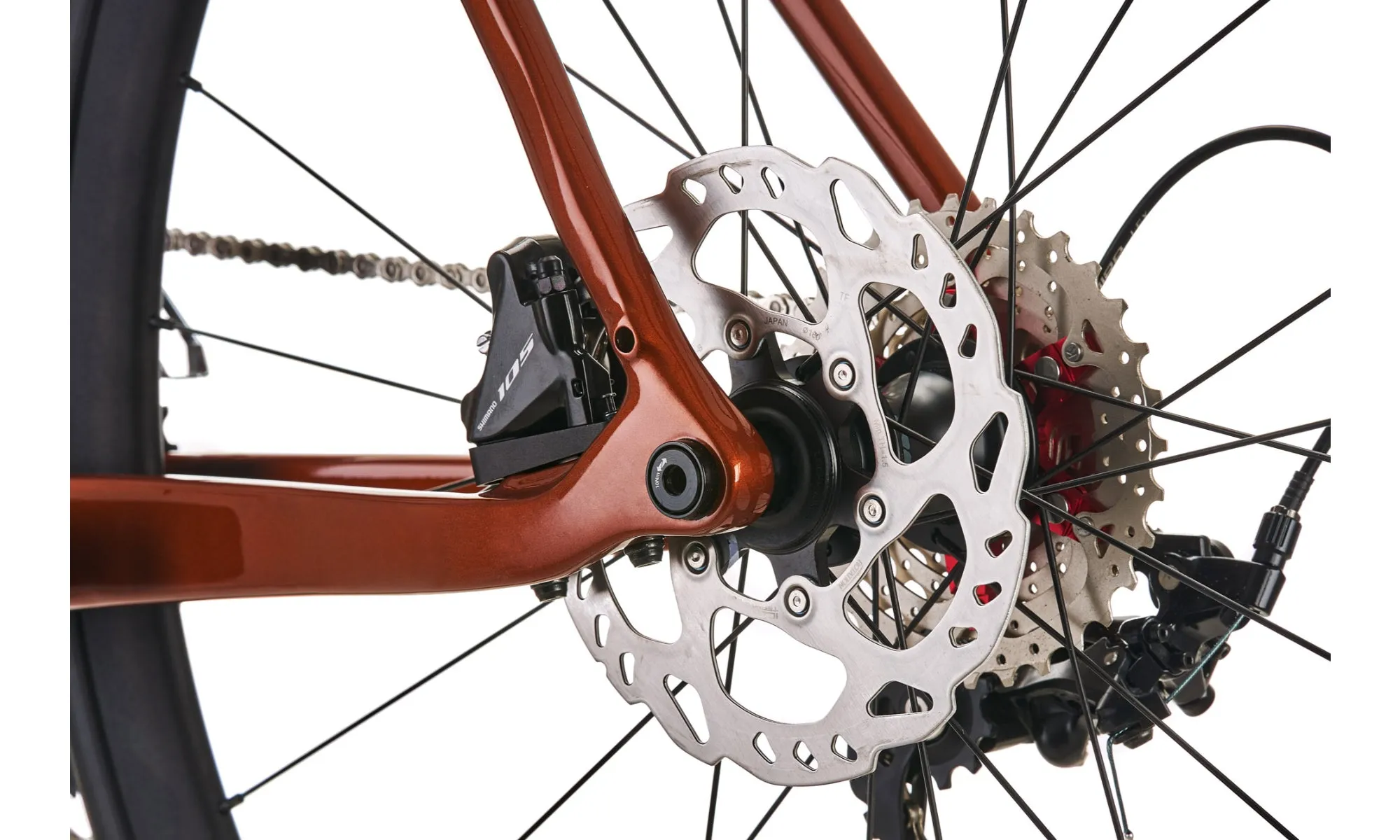

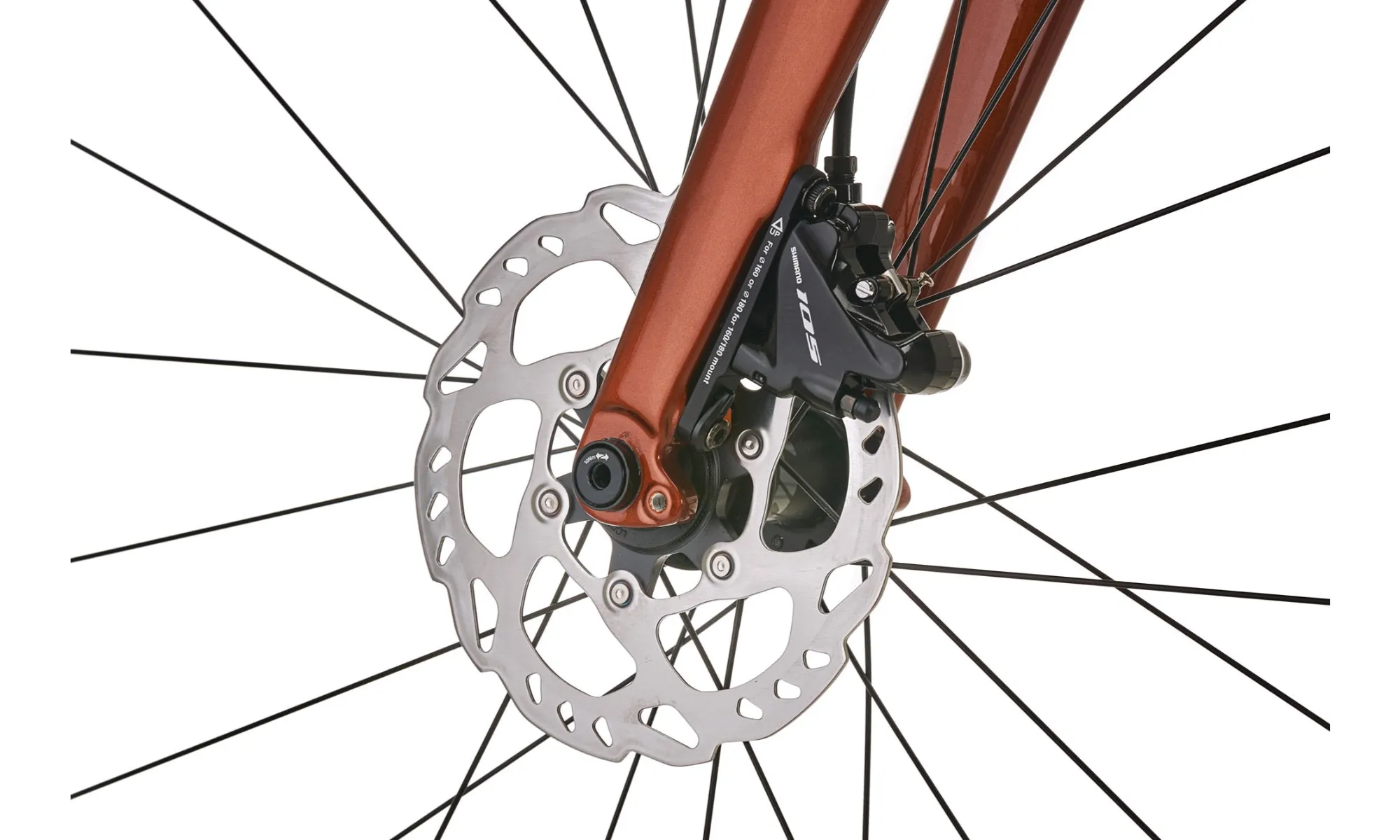

REAR DERAILLEURShimano 105 R7000 RD-R7000, 11 Speed | BRAKESShimano 105 R7000 Hydraulic Disc ST-7025-L & BR-7070-R, Flat Mount |
SHIFTERSShimano 105 R7000 ST-7025-R, 11 Speed | BRAKE ROTORSShimano SM-RT70 Front: 160mm, Rear: 160mm |

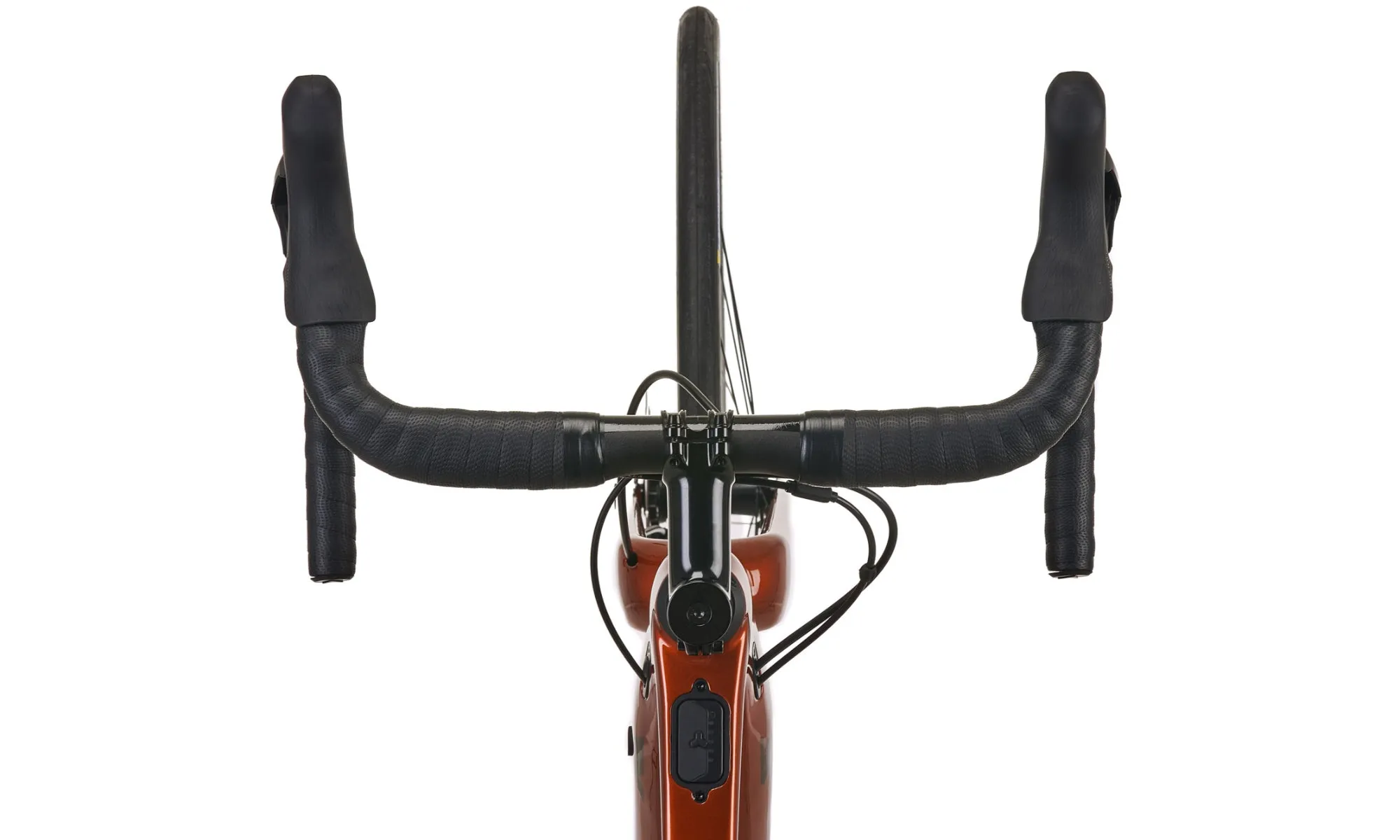

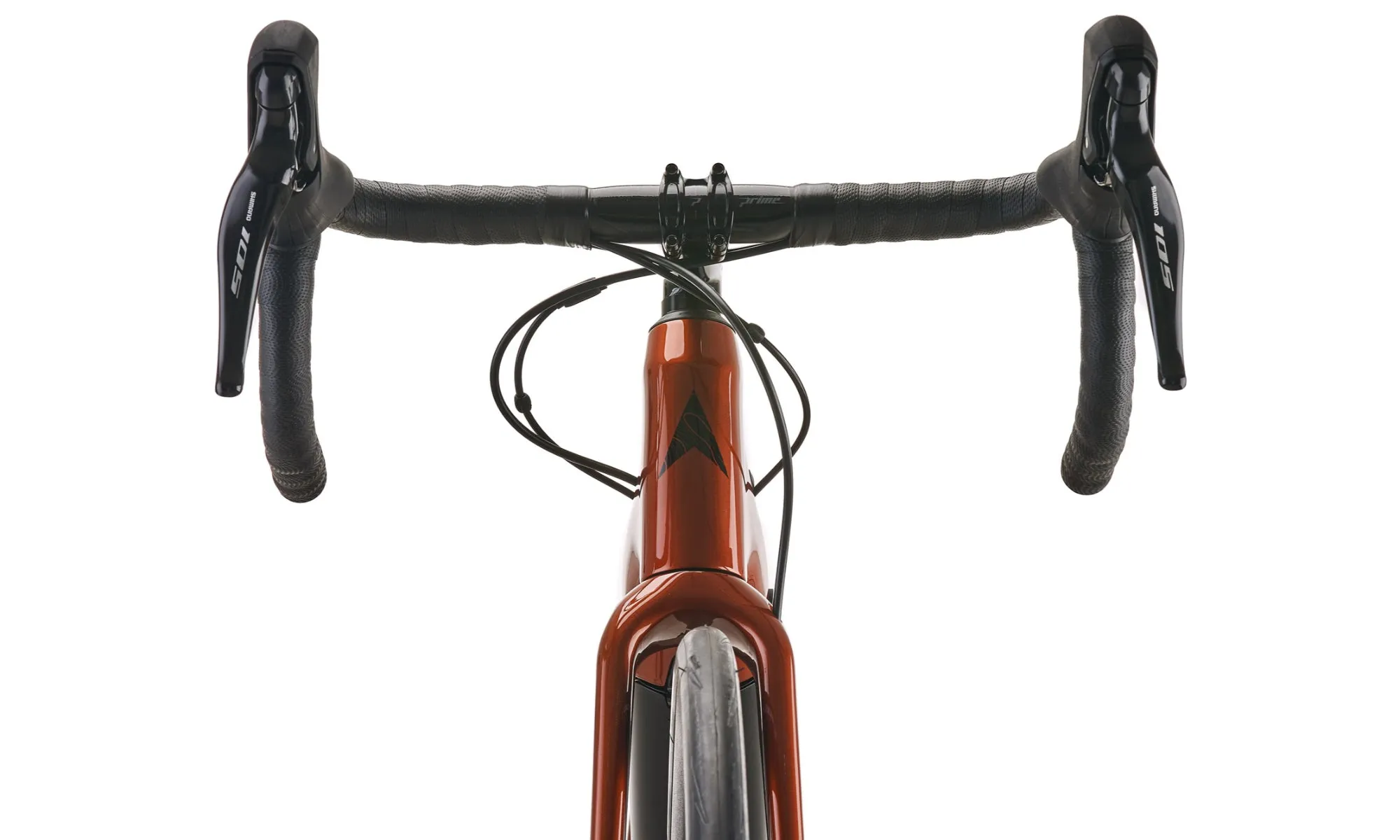

CASSETTESunrace CS-RX1 11 Speed, 11-32T | HANDLEBARSPrime Doyenne Aluminium 6061 Aluminium, 70mm Reach, 125mm Drop, S:400mm M:400mm L:420mm XL:440mm |
CHAINKMC e11T 11 Speed, E-Bike Specific | STEMPrime Doyenne Lightweight Aluminium Bar Bore 31.8mm, /- 5 degrees, S:80mm M:90mm L:100mm XL:110mm |
MOTOR BATTERYFazua Energy 250X Frame Integrated, 252Wh - 36v / 7ah | HEADSETACROS Aix-Low R3 Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40 |
MOTOR COMPUTERN/A N/A | GRIPSVitus Super Grip Anti Slip, Shockproof |

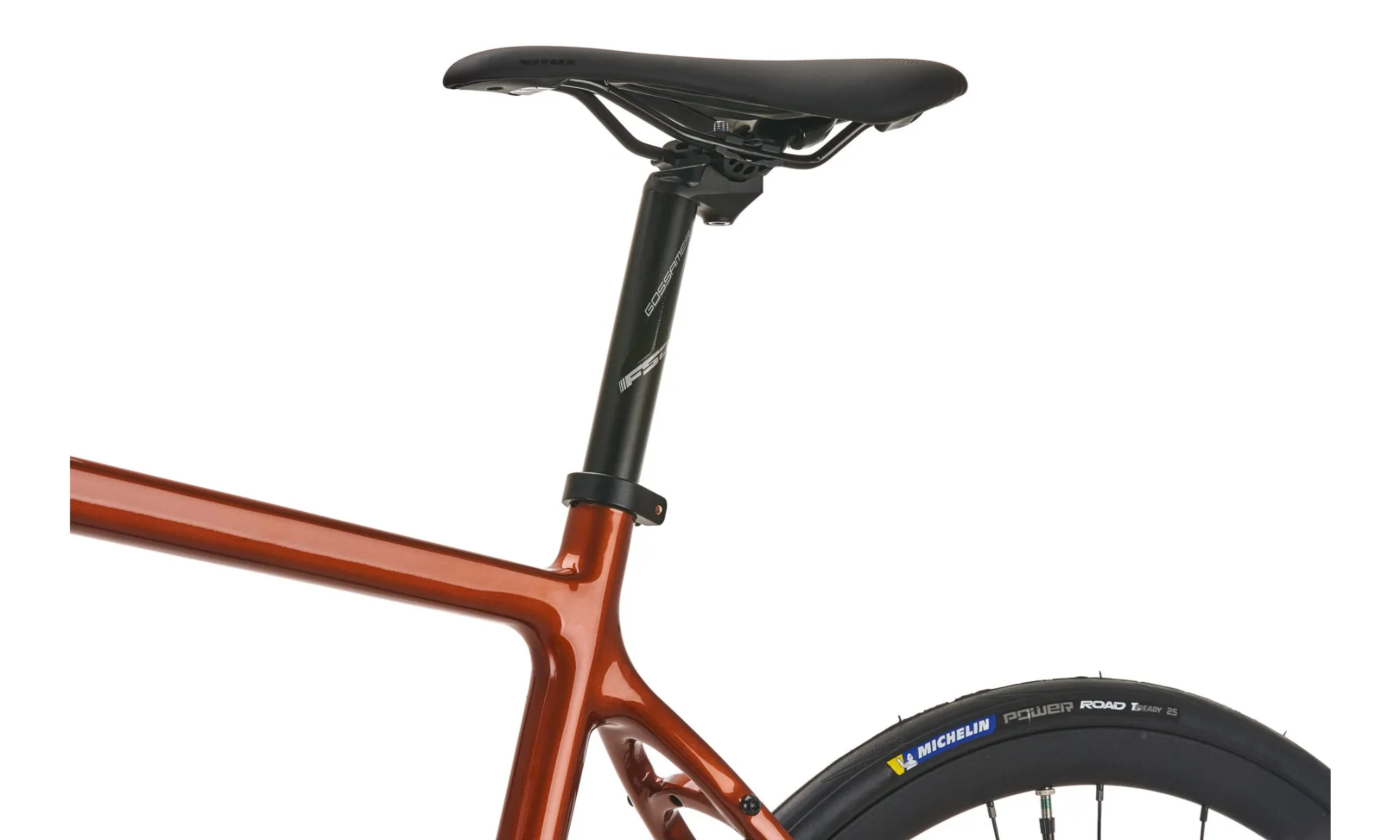

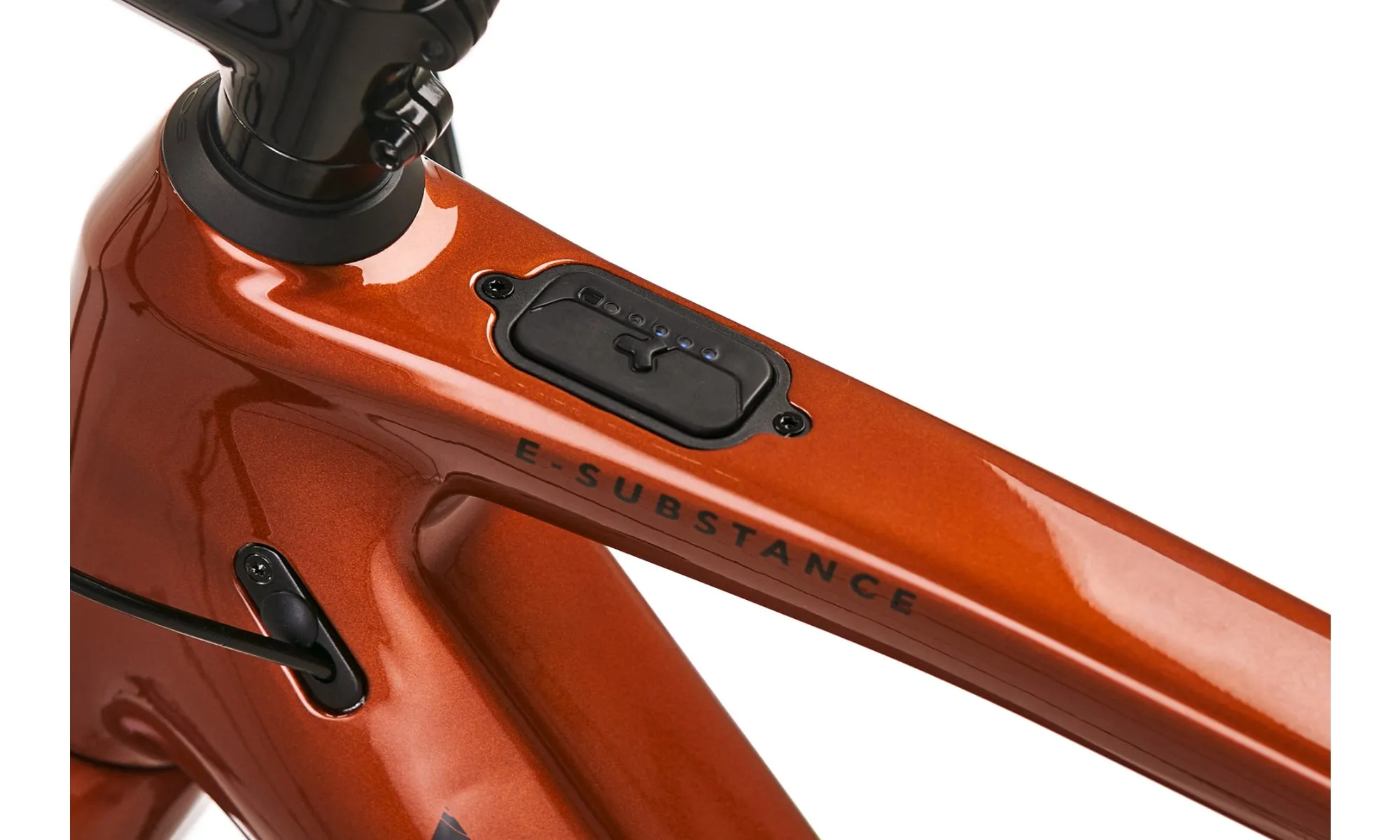

MOTOR SHIFTERFazua Remote fX Frame Integrated | SADDLEVitus Steel Rail |

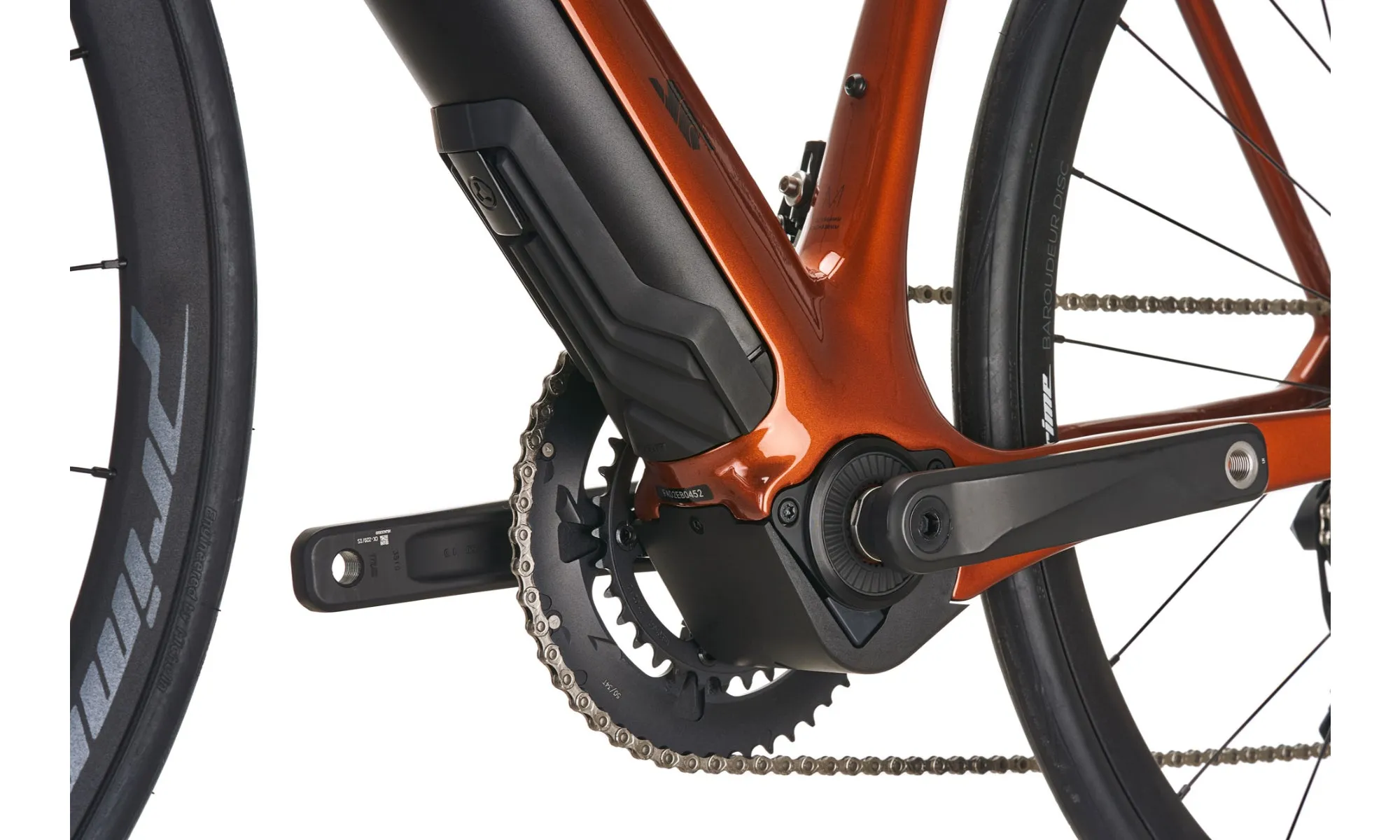

MOTOR DRIVE UNITFazua Ride 50 Trail 250W, Mid Position Motor | SEATPOSTFSA Gossamer Aluminium, 27.2mm x 350mm |
FRONT RIMPrime Baroudeur Disc Alloy 700c, Tubeless Ready | SEATCLAMPAluminium 31.8mm Stainless Steel Bolt |
