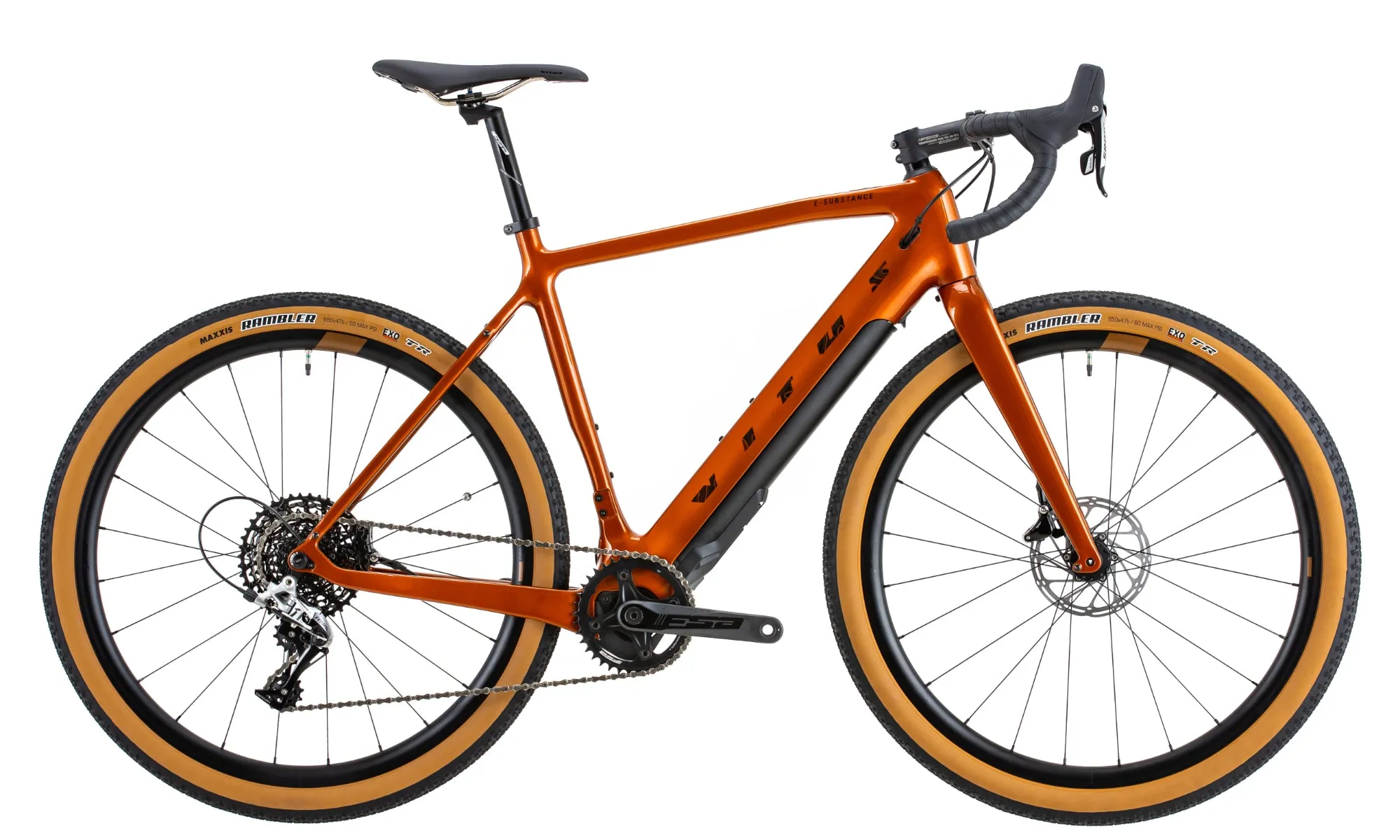

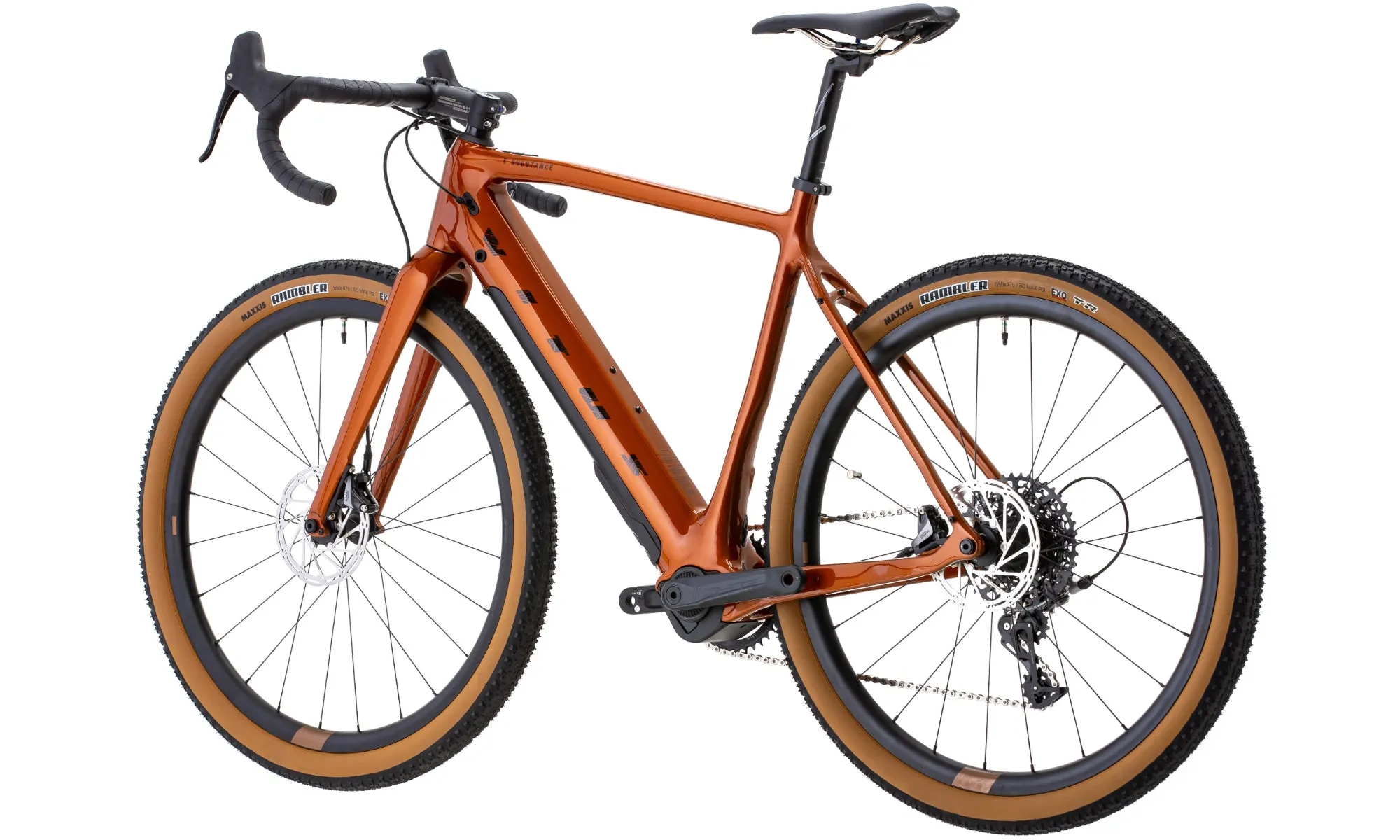

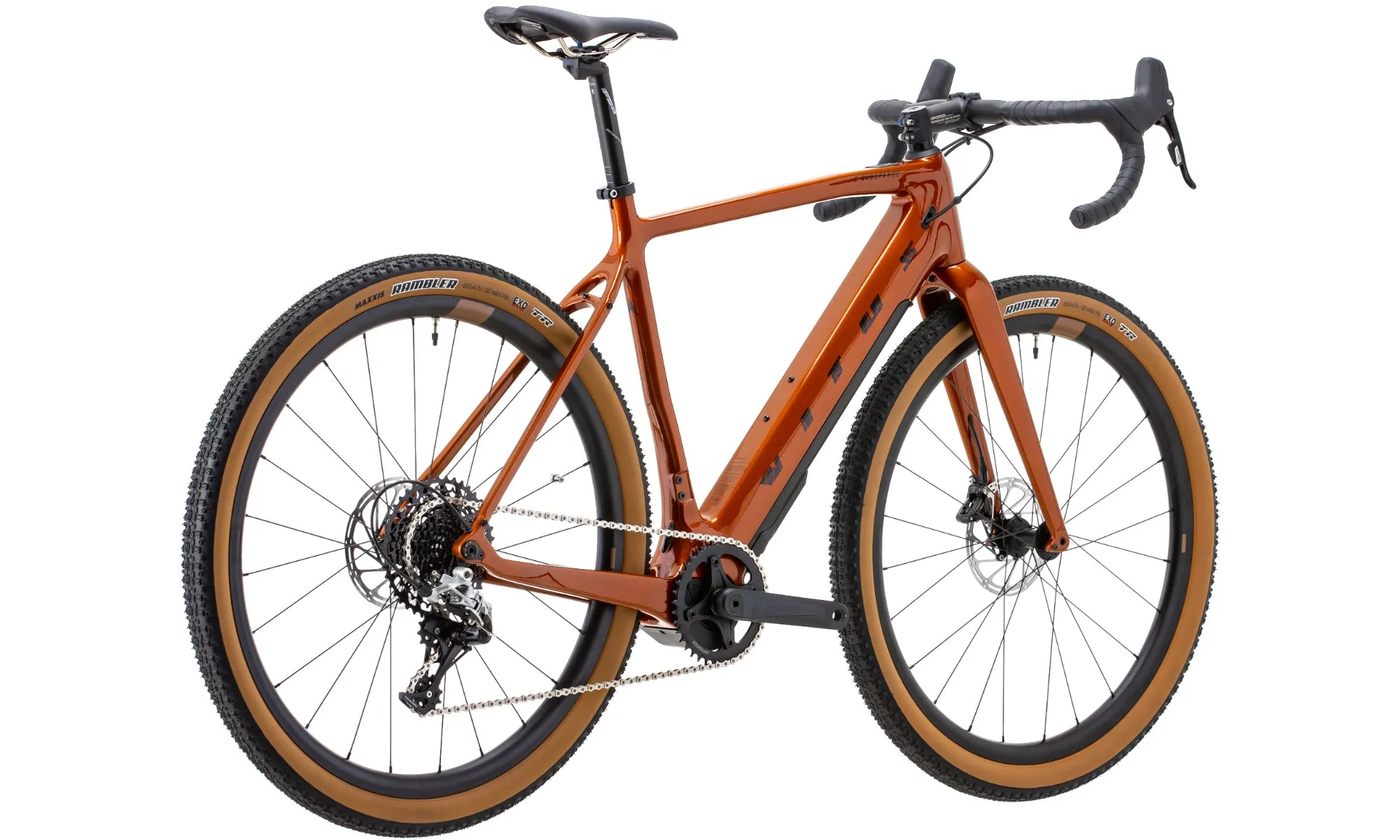

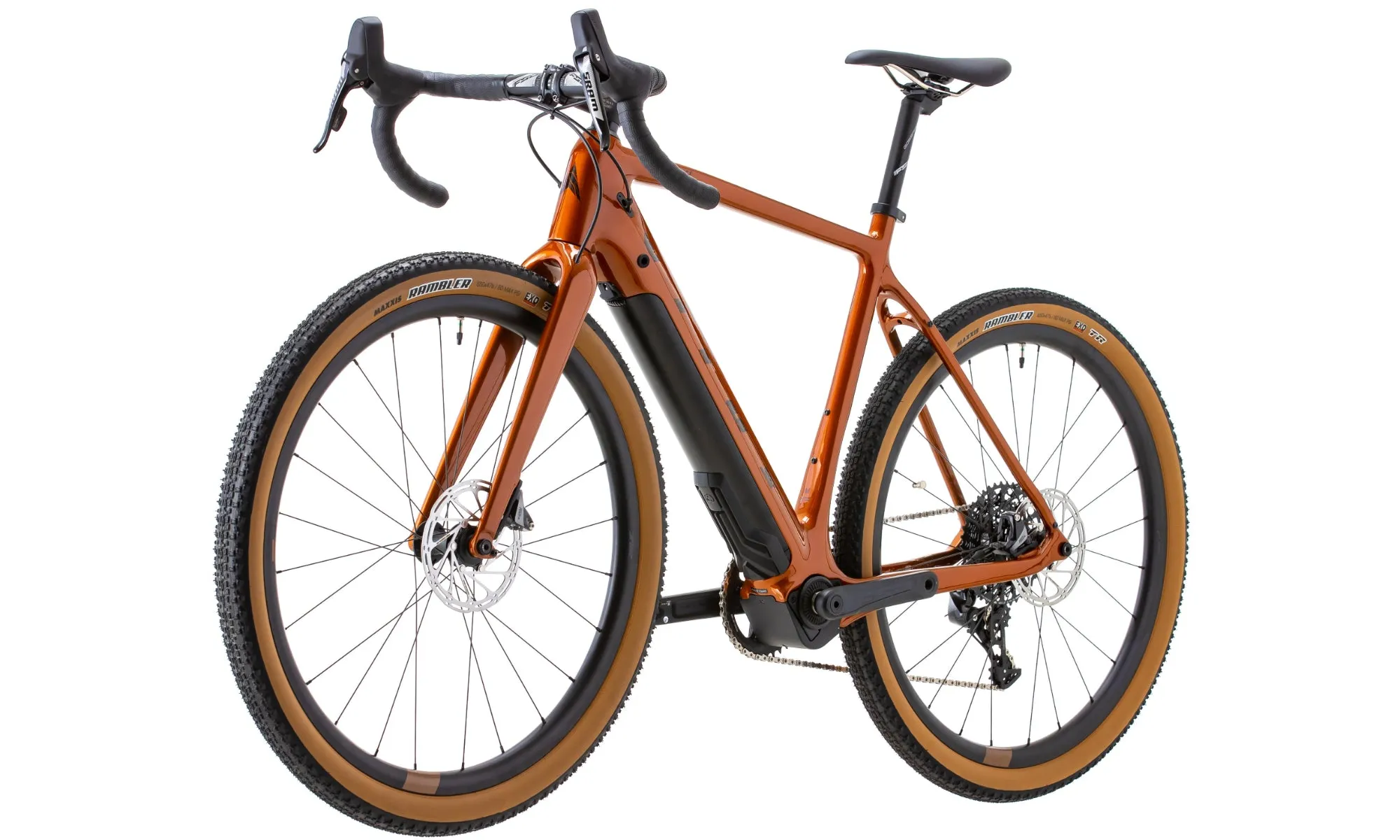

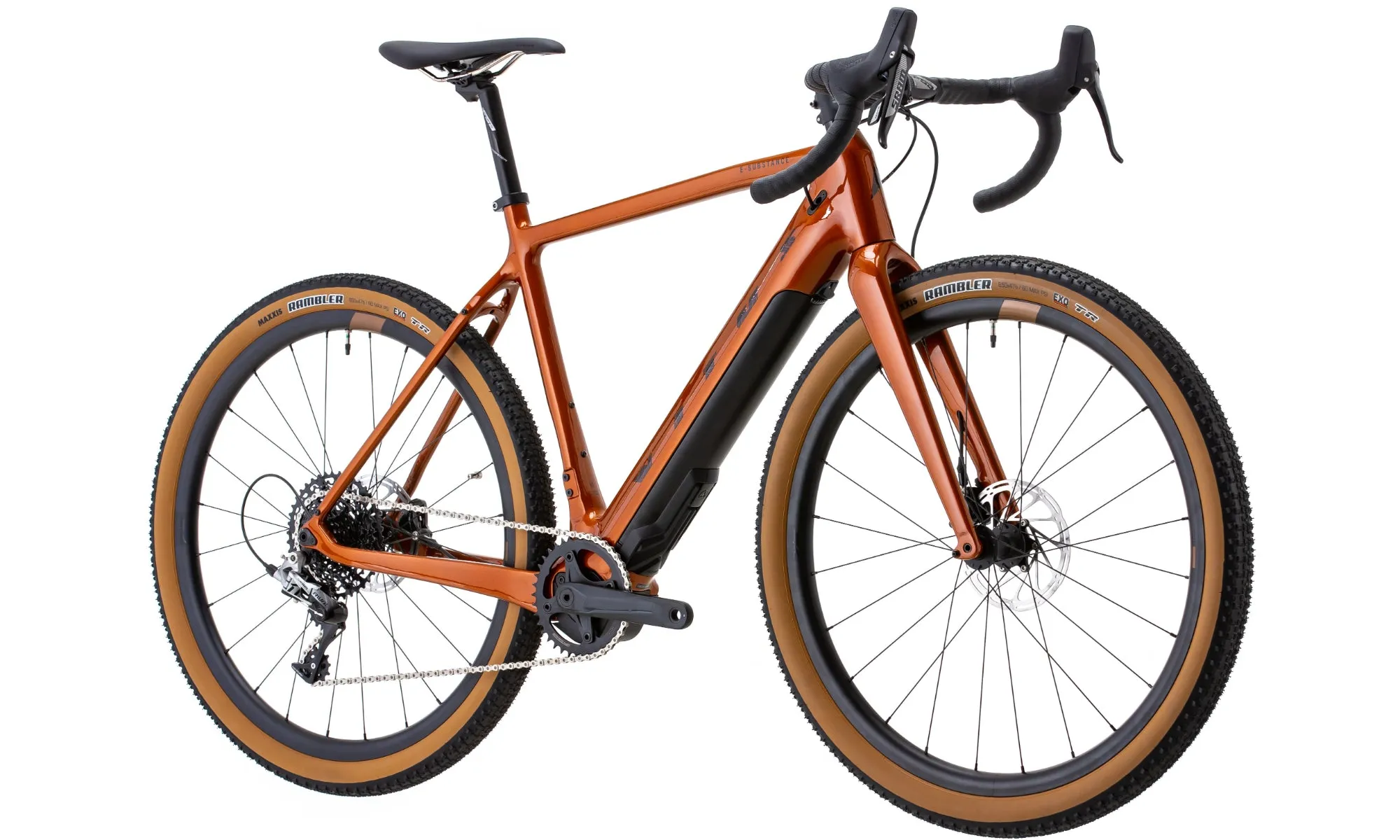

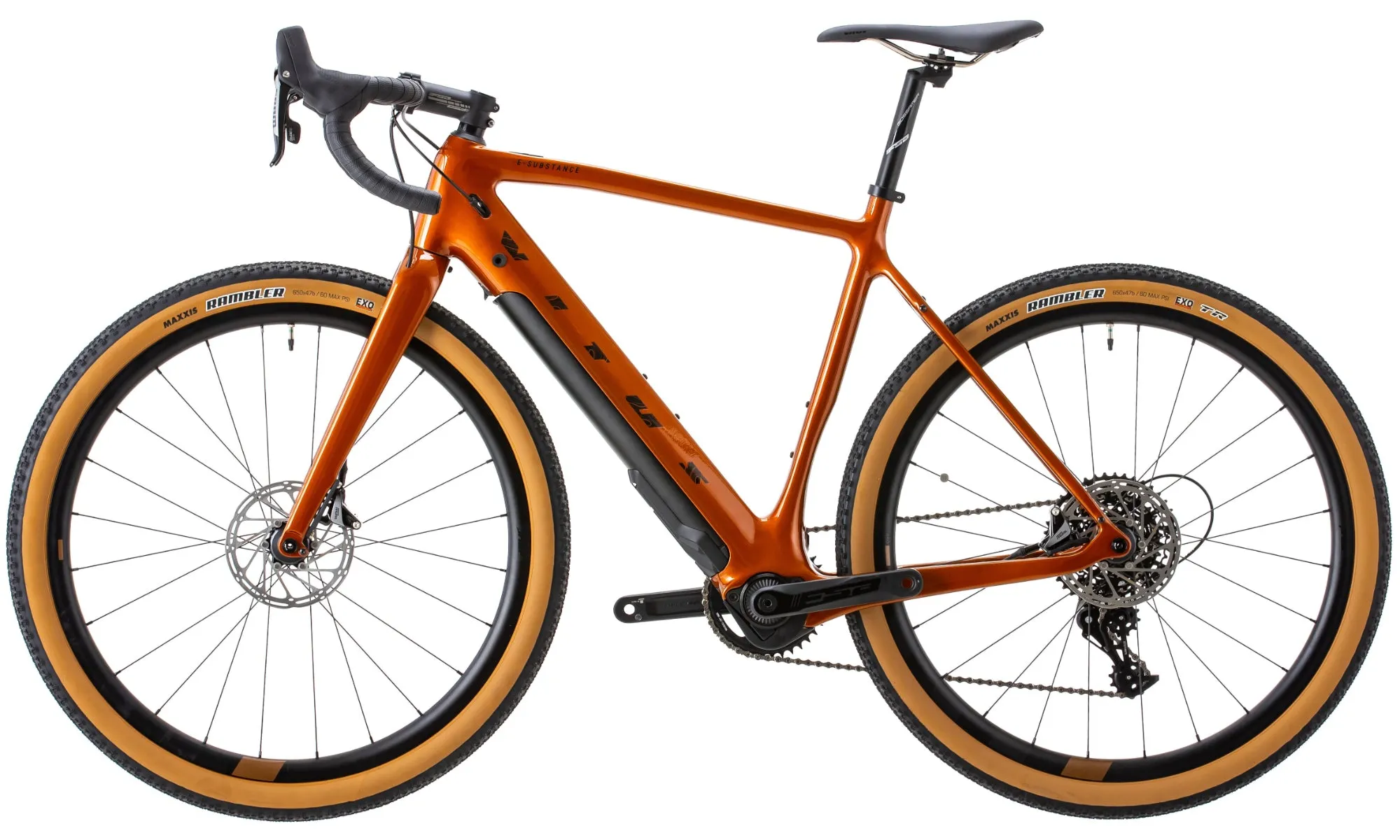

Vitus E-Substance Carbon Rival Gravel Bike (Fazua)

Vitus E-Substance Carbon Rival Gravel Bike (Fazua)

$ 48.75

$ 63.38

Unavailable
Vitus E-Substance Carbon Rival Gravel Bike (Fazua)

Vitus E-Substance Carbon Rival Gravel Bike (Fazua)

$ 48.75

$ 63.38

Colour:
  • Copper
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The Vitus E-Substance loads your ride with freedom and choice. It expands your world, opening up new possibilities to ride and explore where otherwise you might not have looked. Unshackled from the same old routes, each ride reveals new ways ahead, like a fresh map - that bridleway to who-knows-where, the gravel track through the woods or the rougher shortcut that you know is quicker but that other bikes couldn’t handle.

See, in a world obsessed with pace, sometimes we need to focus on the place, the journey and the fun that comes from a bike with the capability to seek out adventures where others wouldn’t.

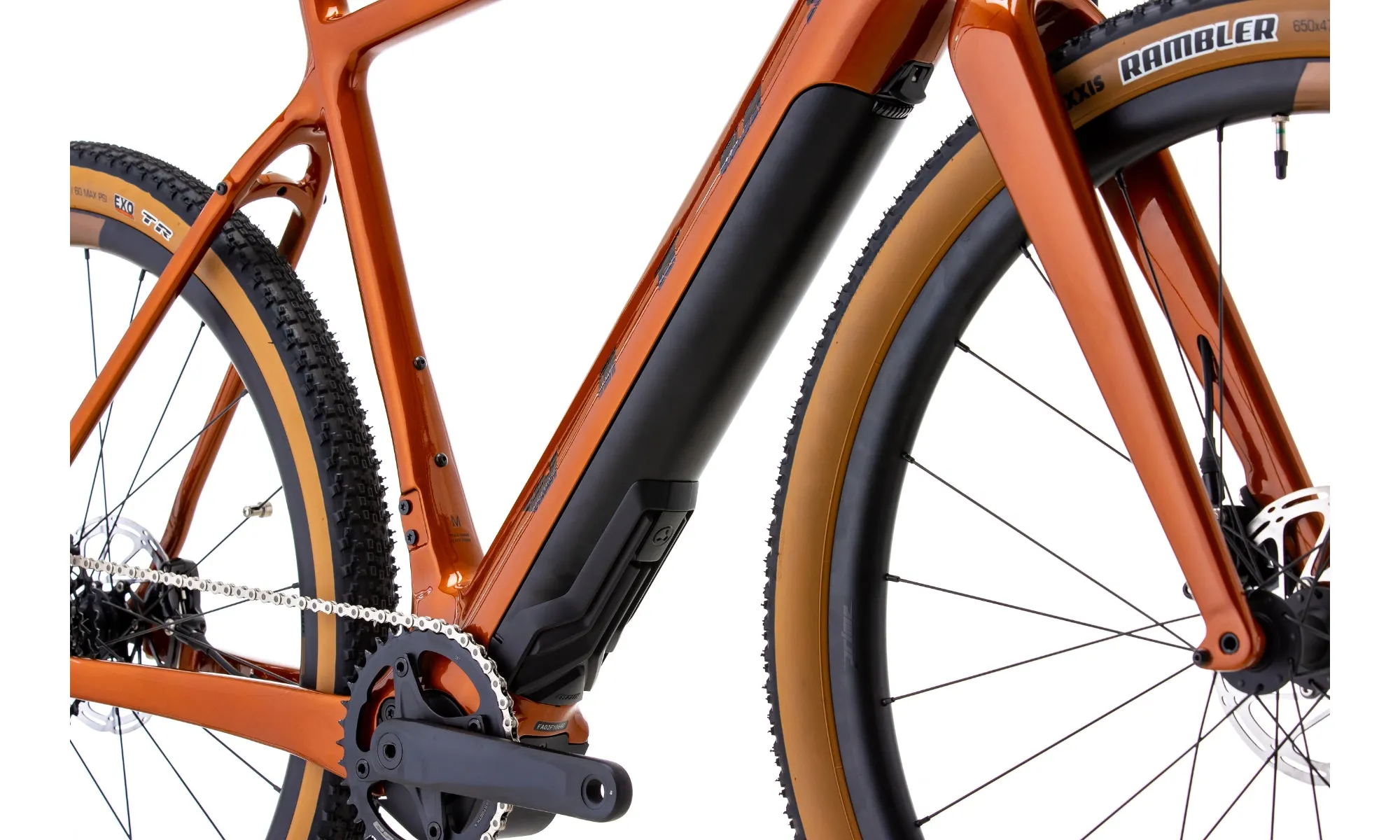

Whether embarking on a bikepacking adventure or simply staying light for a mixed-terrain local loop, the e-Substance is capable of adapting to suit your ride. At its core, a lightweight carbon frame and fork are tuned for comfort on long days and across varied surfaces, aided by the compact Fazua electric drive system with three assistance levels up to 250 watts. The latest top-tube controller lets you easily manage performance and with everything cleanly integrated, the Substance retains its modern look. Paired with SRAM’s smooth Rival 1X drivetrain, the frame is also compatible with 700c or 650b wheels, so you can fine-tune the setup to best fit where you are riding. For tough rides where water, food and spares might be hard to come by, rack mounts enable you to load up with whatever’s required to reach the next supply point.

This isn’t simply about the same cliches of getting off the beaten track or going in search of the road less travelled, because the e-Substance is more than a gravel or adventure bike. Retaining the essence of what the Substance stands for, the addition of the electric drive system simply opens up the possibility for you to do more. It’s a bike that gives you options. The Substance family empowers a new mindset, one that entices you to break away from routine and to ride where you want to ride, unrestricted.

  • UD carbon frame with internal cable routing

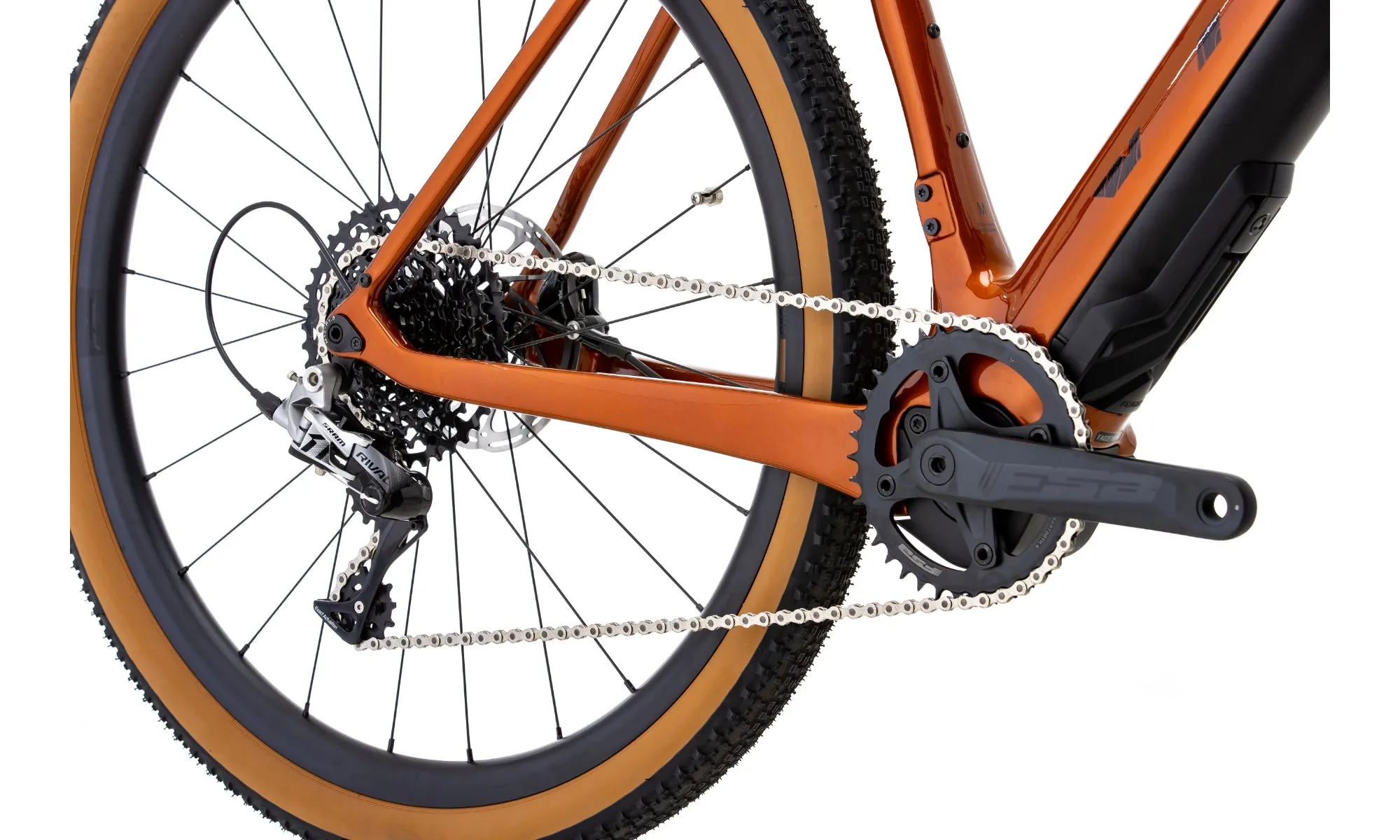

  • SRAM Rival 11 speed groupset
  • Fazua drive system with 3 Assistance levels assisting up to 25 km/h
  • Mid-drive motor, 250 Watt Max - 55 Nm
  • 252Wh battery
  • Approx 2hr charge time - UK Charger Plug

Fazua Ride 50 Trail powered carbon adventure gravel bike

Drop handlebar explorer with electric assistance

Frame Material

UD Carbon

Suspension Travel (MTB Only)

N/A

Wheel Size

650b

Available Size

S, M, L, XL

Colour

Copper

Weight:

Medium: 14.6kg



Specifications

FRAMEE-Substance Carbon - Fazua

UD Carbon, Fazua evation Integration, Mudguard Mounts, Rack Mounts, 12mm x 142mm Hub Spacing, Flat Mount, Axle Specifcations: 172mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

REAR RIMPrime Orra V2 Alloy

650b, Tubeless Ready

FORKSE-Substance Carbon

UD Carbon, Tapered Steerer, 100 x 12mm Axle, Flat Mount, Mud Guard Mounts, Axle Specifcations: 120mm Length, 14mm Thread Length, M12xP1.5 Thread Pitch

FRONT HUBPrime SR2D



100 x 12mm, Centre Lock

SHOCKN/A

N/A

REAR HUB Prime SR2D

142 x 12mm, Centre Lock, XD-R Freehub, 36T Ratchet System

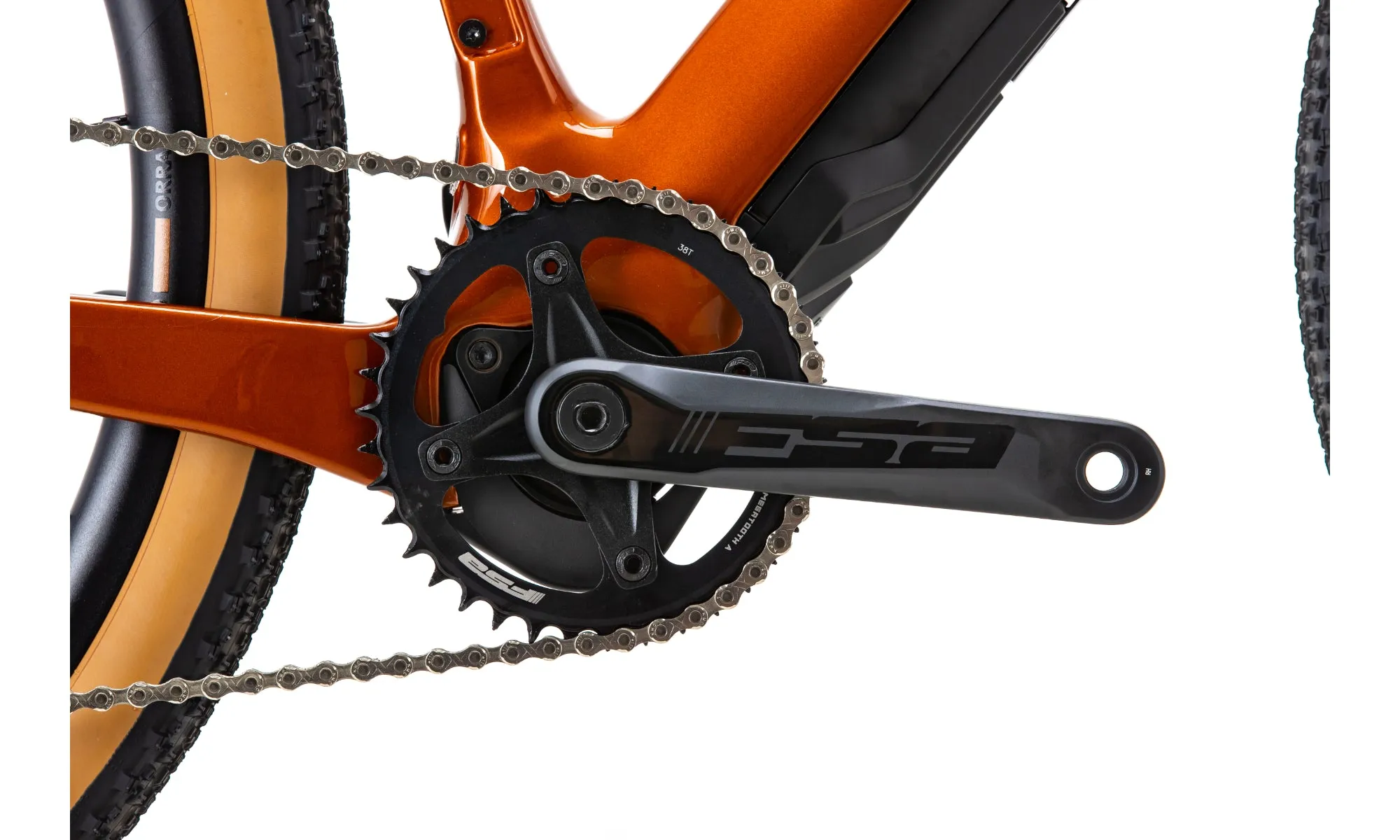

CHAINSETFSA CK 746

38T, 11 Speed, S:170mm M:172.5mm L:172.5mm XL:175mm

WHEELSETPrime Orra V2 Alloy

650b, Tubeless Ready, 100 x 12mm Front, 142 x 12mm Rear, Centre Lock, XD-R Freehub

BOTTOM BRACKETN/A

N/A

FRONT TYREMaxxis Rambler

650b x 47, Tubeless Ready, EXO Casing, Tan Wall

FRONT DERAILLEURN/A

N/A

REAR TYREMaxxis Rambler

650b x 47, Tubeless Ready, EXO Casing, Tan Wall

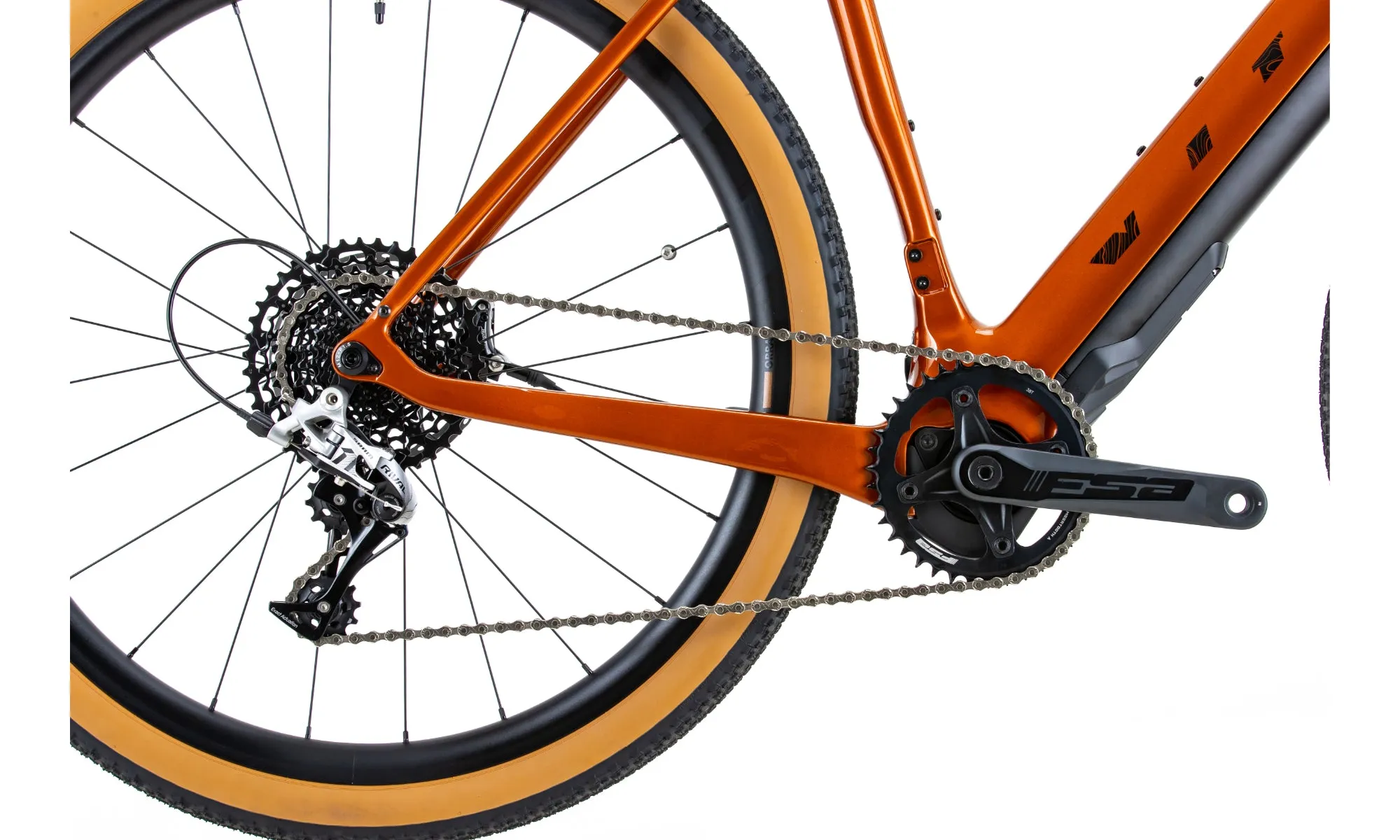

REAR DERAILLEURSRAM Rival

11 Speed, Long Cage

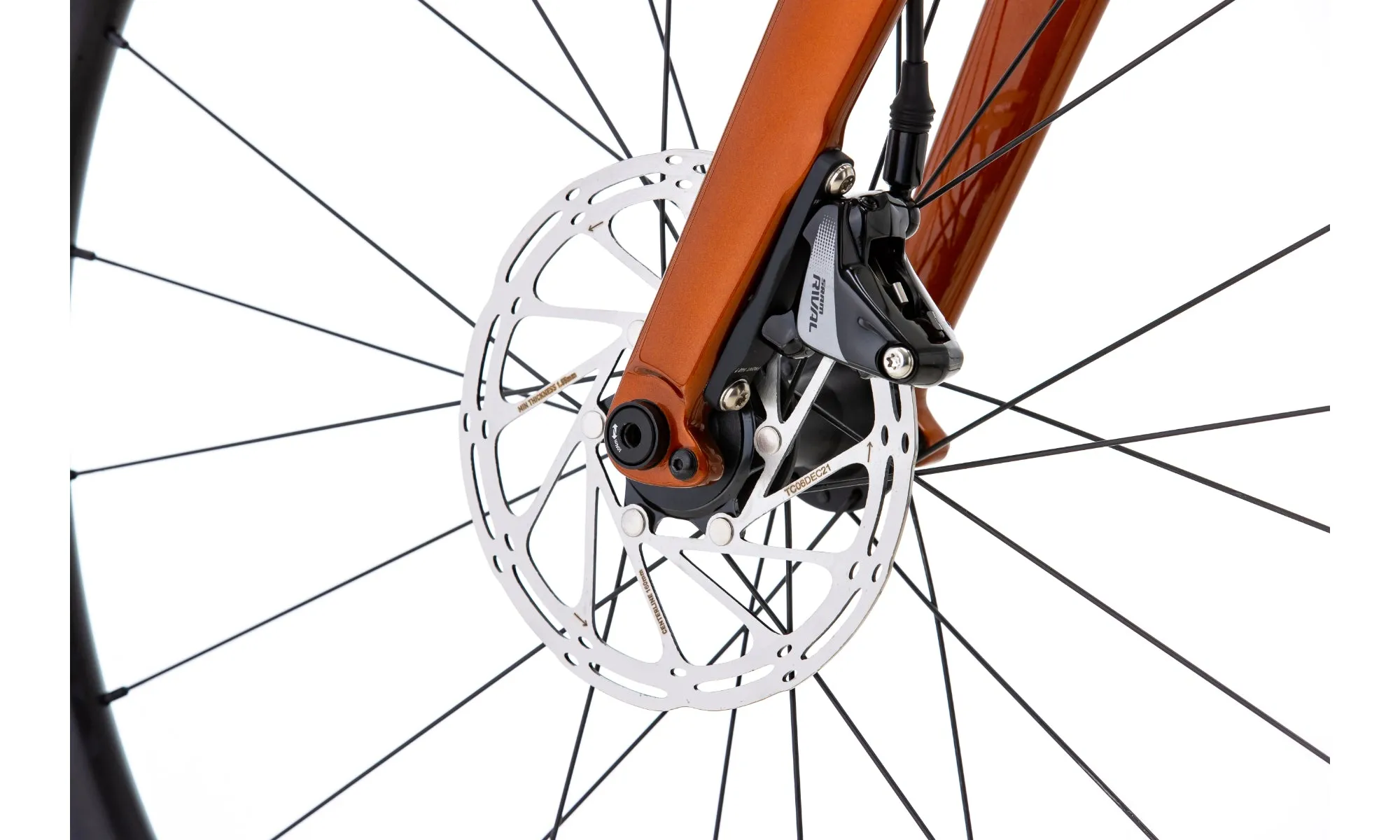

BRAKESSRAM Rival



Hydraulic Disc, Flat Mount

SHIFTERSSRAM Rival



11 Speed

BRAKE ROTORSSRAM Centreline



Front: 160mm, Rear: 160mm

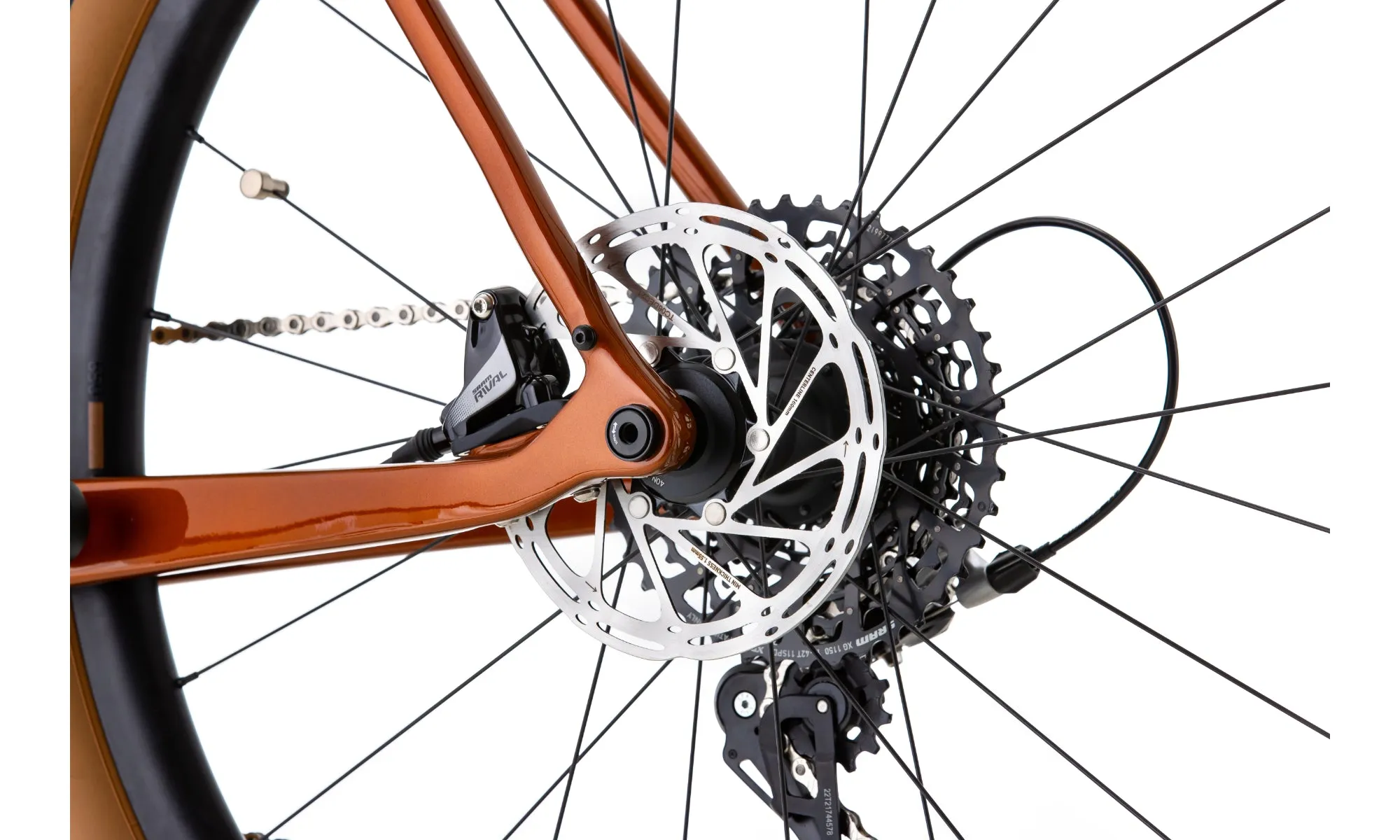

CASSETTESRAM XG-1150

11 Speed, 10-42T

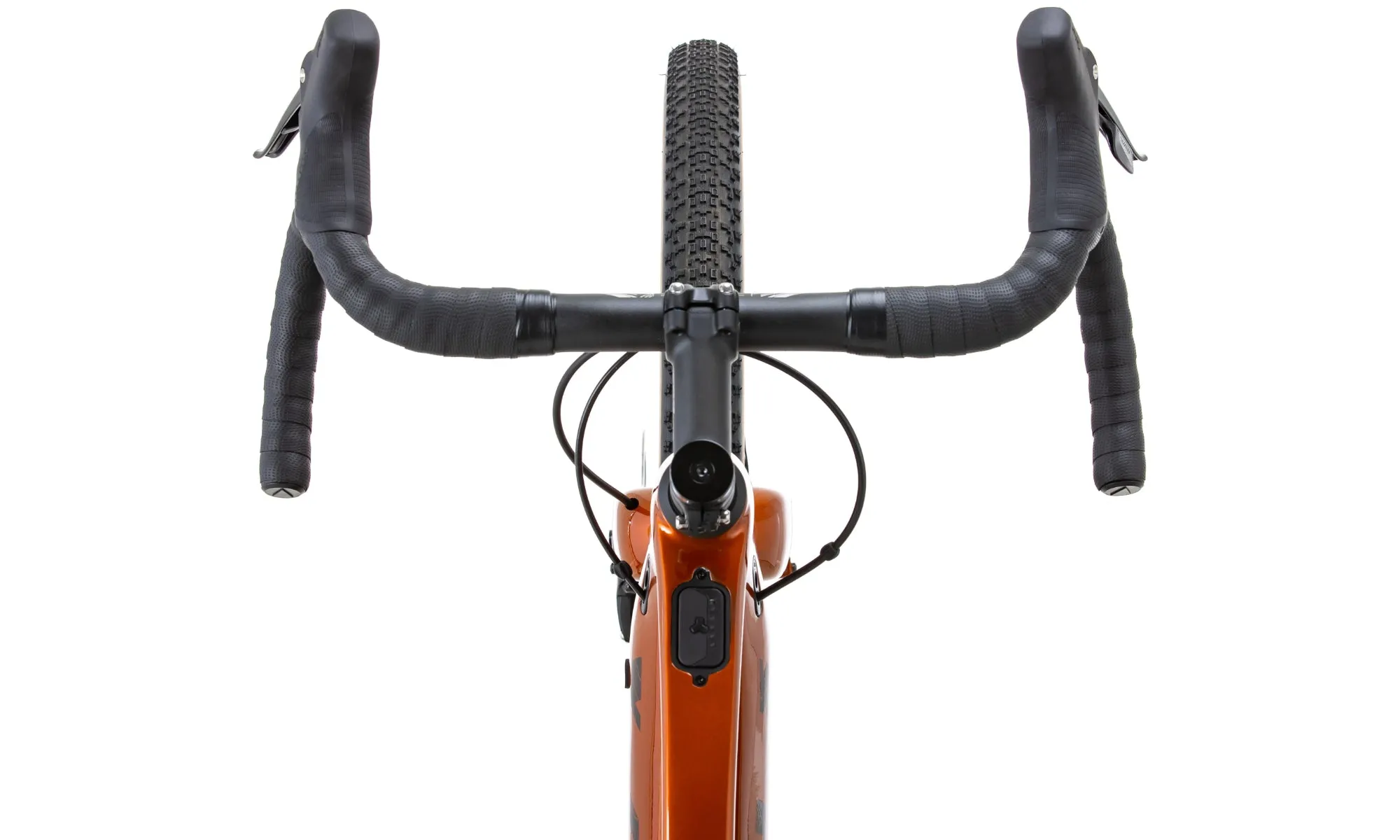

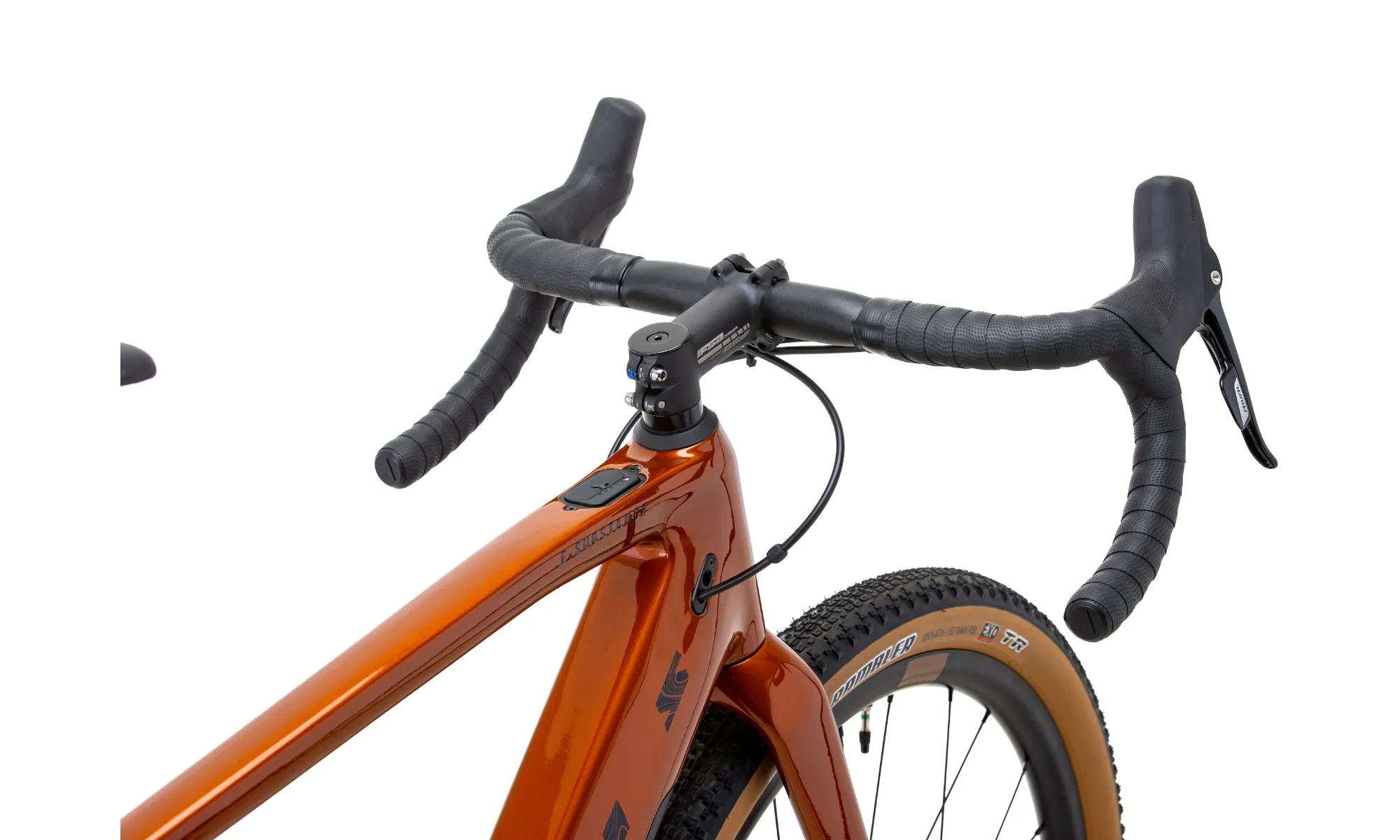

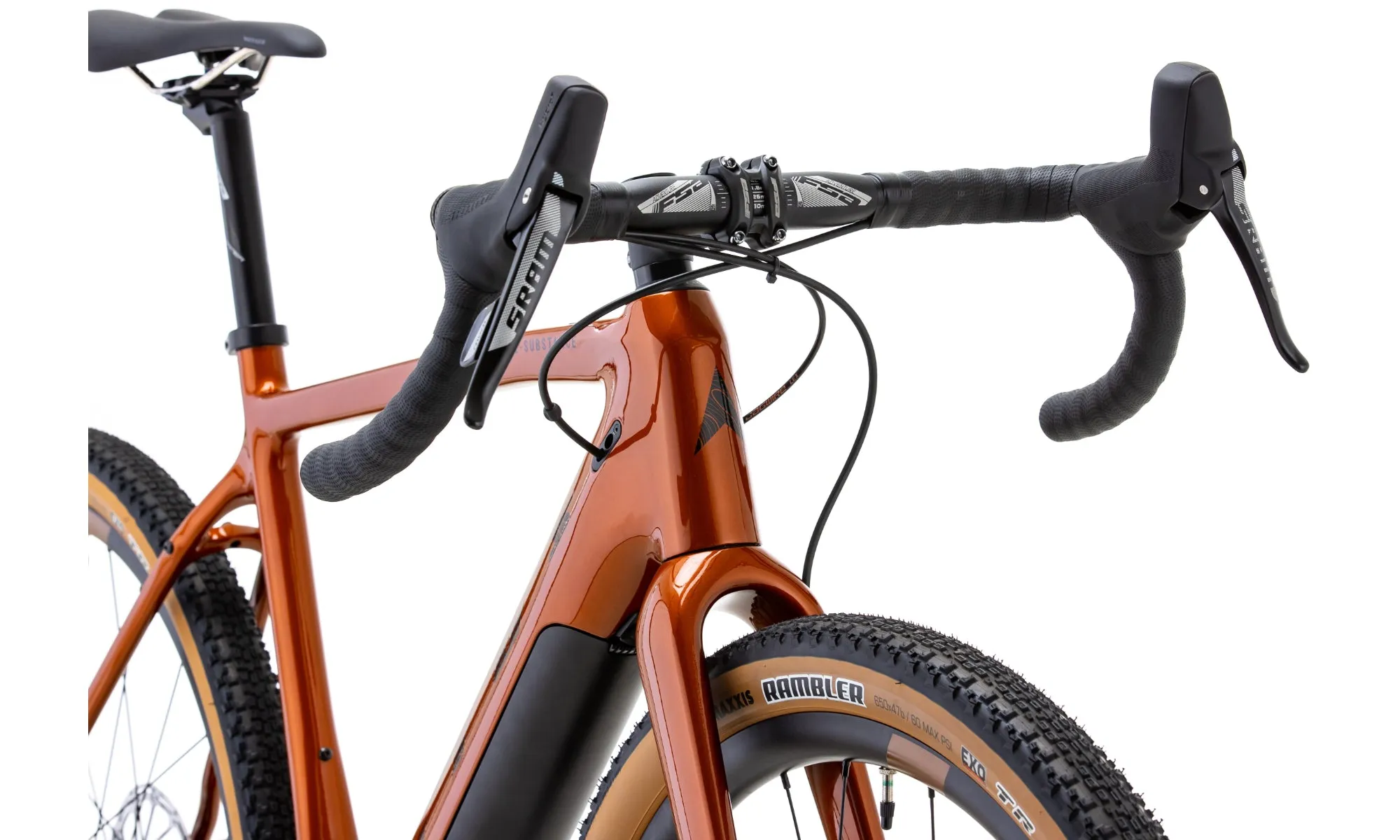

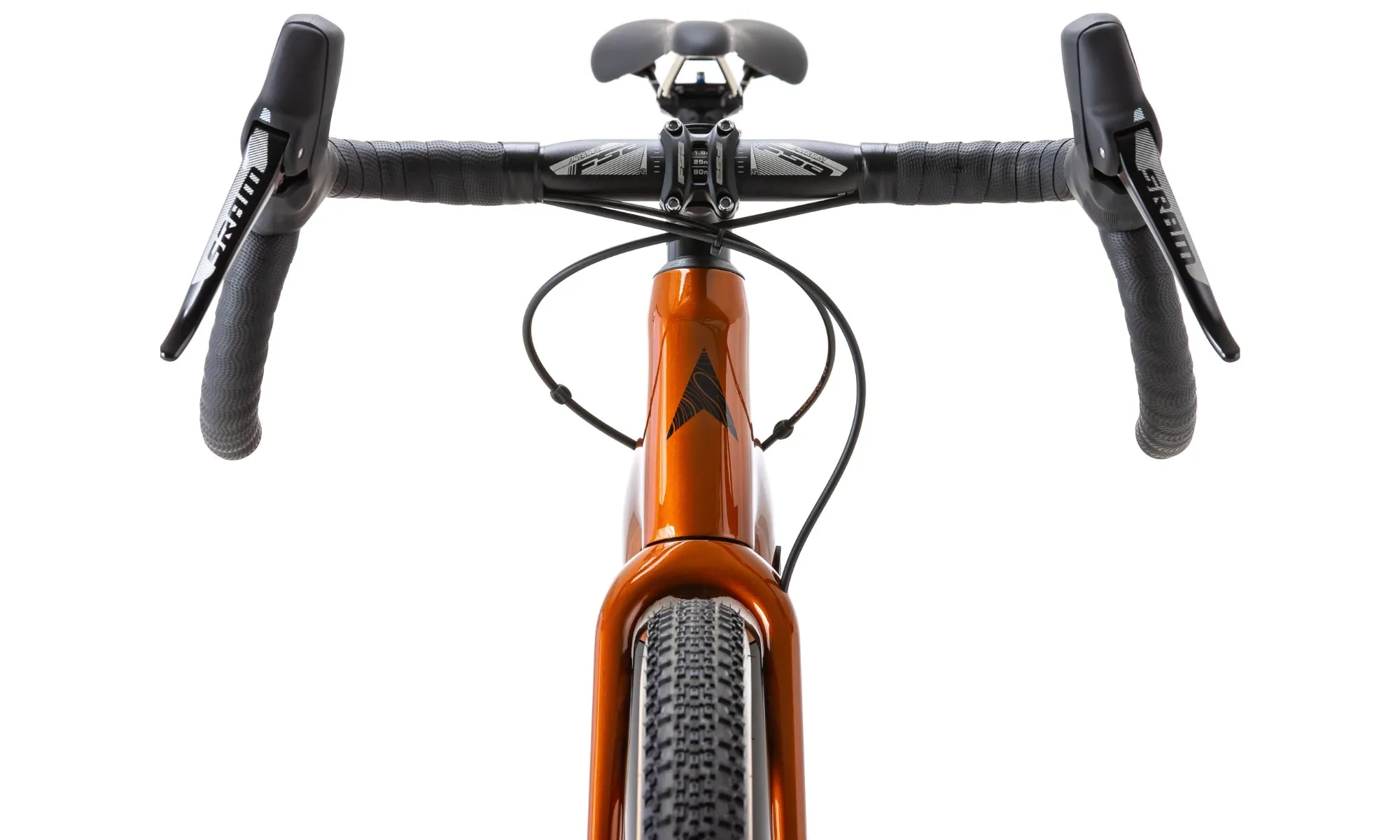

HANDLEBARSFSA Adventure Compact Handlebars



6061 Aluminium, 80mm Reach, 125mm Drop, 12 Degree Flare, S:420mm M:420mm L:440mm XL:440mm

CHAINKMC e11T



11 Speed, E-Bike Specific

STEMFSA Omega 6061 Aluminium



3D Forged, Bar Bore: 31.8mm, /- 6 degrees, S:80mm M:90mm L:100mm XL:110mm

MOTOR BATTERYFazua Energy 250X



Frame Integrated, 252Wh - 36v / 7ah

HEADSETACROS Aix-Low R3



Sealed Bearings, OD48, 1 1/8” – 1 ½”, 41.8 / 28.6 – 52 / 40

MOTOR COMPUTERN/A



N/A

GRIPSVitus Super Grip



Anti Slip, Shockproof

MOTOR SHIFTERFazua Remote fX



Frame Integrated

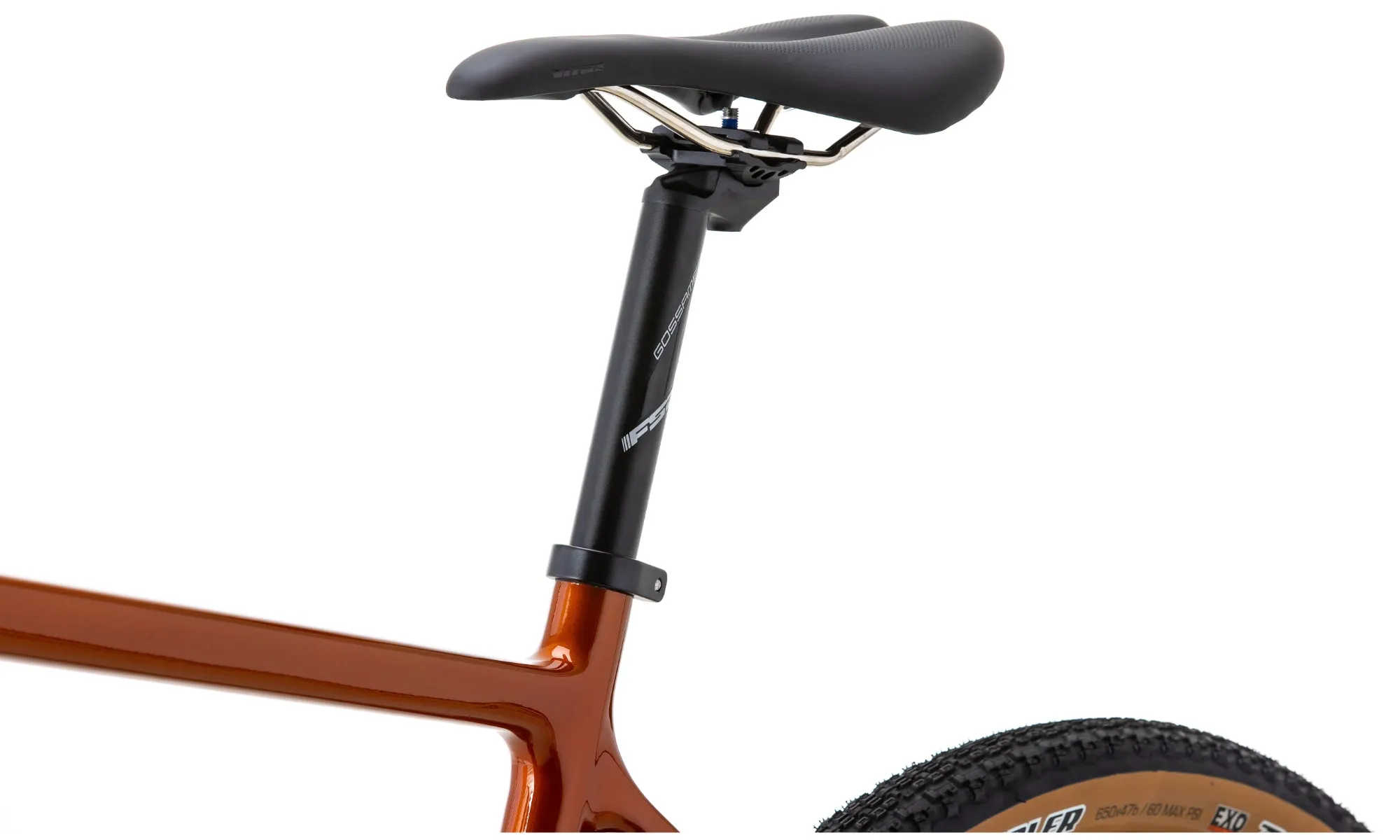

SADDLEVitus



Ti Rail

MOTOR DRIVE UNITFazua Ride 50 Trail



250W, Mid Position Motor

SEATPOSTFSA Gossamer



Aluminium, 27.2mm x 350mm

FRONT RIMPrime Orra V2 Alloy



650b, Tubeless Ready

SEATCLAMPAluminium 31.8mm



Stainless Steel Bolt
